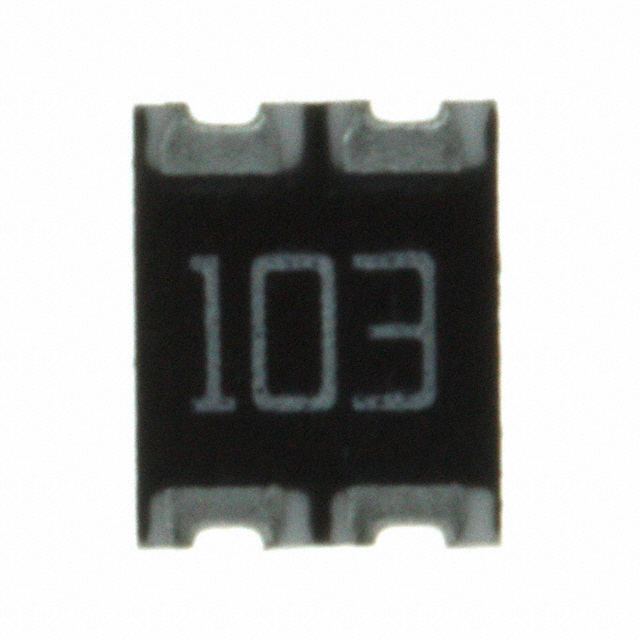

744C043103JP

Obsolete

CTS Resistor Products

RES ARRAY 2 RES 10K OHM 1210

Search across all available documentation for this part.

Obsolete

CTS Resistor Products

RES ARRAY 2 RES 10K OHM 1210

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

10k Ohm ±5% 125mW Power Per Element Isolated 2 Resistor Network/Array ±200ppm/°C 1210 (3225 Metric), Concave

Technical documentation and resources

Parameters and characteristics commom to parts in this series

RES ARRAY 2 RES 33 OHM 1210

Part	Mounting Type	Power Per Element	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Number of Pins	Resistance (Ohms)	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Tolerance	Package / Case	Circuit Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Number of Resistors	Tolerance	Resistance (Ohms)
CTS Resistor Products 744C043330JP	Surface Mount	125 mW	2.54 mm	3.2 mm	0.1 in	0.126 in	4	33 Ohms	-55 °C	125 °C	200 ppm/°C	5 %	1210 (3225 Metric), Concave	Isolated	0.7 mm	0.028 in	2
CTS Resistor Products 744C043000XP	Surface Mount	125 mW	2.54 mm	3.2 mm	0.1 in	0.126 in	4	0 Ohms	-55 °C	125 °C	200 ppm/°C		1210 (3225 Metric), Concave	Isolated	0.7 mm	0.028 in	2	Jumper
CTS Resistor Products 744C043103JP	Surface Mount	125 mW	2.54 mm	3.2 mm	0.1 in	0.126 in	4		-55 °C	125 °C	200 ppm/°C	5 %	1210 (3225 Metric), Concave	Isolated	0.7 mm	0.028 in	2		10k
CTS Resistor Products 744C043470JTR	Surface Mount	125 mW	2.54 mm	3.2 mm	0.1 in	0.126 in	4	47 Ohms	-55 °C	125 °C	200 ppm/°C	5 %	1210 (3225 Metric), Concave	Isolated	0.7 mm	0.028 in	2
CTS Resistor Products 744C043470JP	Surface Mount	125 mW	2.54 mm	3.2 mm	0.1 in	0.126 in	4	47 Ohms	-55 °C	125 °C	200 ppm/°C	5 %	1210 (3225 Metric), Concave	Isolated	0.7 mm	0.028 in	2
CTS Resistor Products 744C043222JP	Surface Mount	125 mW	2.54 mm	3.2 mm	0.1 in	0.126 in	4	2.2 kOhms	-55 °C	125 °C	200 ppm/°C	5 %	1210 (3225 Metric), Concave	Isolated	0.7 mm	0.028 in	2
