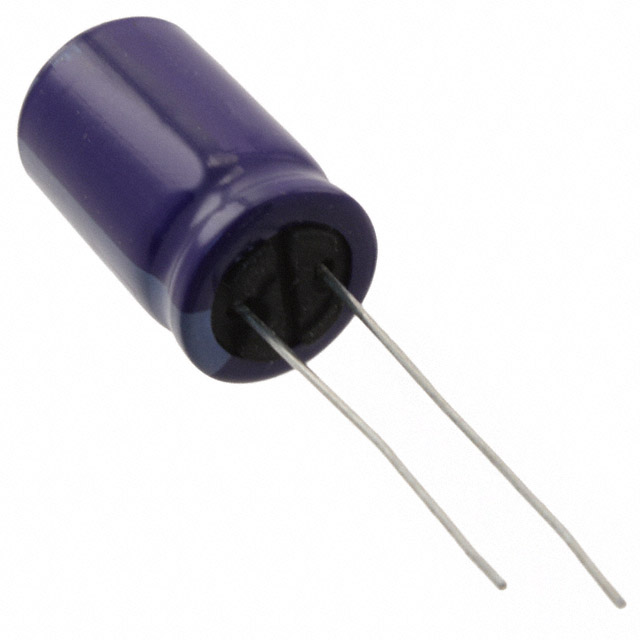

ECA-1CM332B

Active

Panasonic Industrial Automation Sales

CAP ALUM 3300UF 20% 16V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECA-xxM Spec Sheet Datasheet

ECA-1CM332B

Active

Panasonic Industrial Automation Sales

CAP ALUM 3300UF 20% 16V RADIAL

Deep-Dive with AI

DocumentsECA-xxM Spec Sheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ECA-1CM332B

Applications	General Purpose
Capacitance	3.3 mF
Height - Seated (Max) [Max] [z]	1.063 in
Height - Seated (Max) [Max] [z]	27 mm
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	2.04 A
Ripple Current @ Low Frequency	1.2 A
Size / Dimension [diameter]	0.492 in
Size / Dimension [diameter]	12.5 mm
Tolerance	20 %
Voltage - Rated	16 V

ECA-1CM Series

Part	Ripple Current @ High Frequency	Lifetime @ Temp.	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Polarization	Lead Spacing	Lead Spacing	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Capacitance	Package / Case	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales ECA-1CM221	476 mA	2000 Hrs	280 mA	0.48 "	12.2 mm	Polar	0.098 in	2.5 mm	20 %	0.248 in	6.3 mm	Through Hole	220 µF	Radial Can	General Purpose	85 °C	-40 °C	16 V
Panasonic Industrial Automation Sales ECA-1CM102B	1.156 A	2000 Hrs	680 mA	0.669 in	17 mm	Polar	0.197 in	5 mm	20 %	0.394 in	10 mm	Through Hole	1000 µF	Radial Can	General Purpose	85 °C	-40 °C	16 V
Panasonic Industrial Automation Sales ECA-1CM682	2.72 A	2000 Hrs	1.6 A			Polar	0.295 in	7.5 mm	20 %	0.63 in	16 mm	Through Hole	6800 µF	Radial Can	General Purpose	85 °C	-40 °C	16 V
Panasonic Industrial Automation Sales ECA-1CM101	306 mA	2000 Hrs	180 mA	0.472 "	12 mm	Polar	0.079 in	2 mm	20 %	0.197 "	5 mm	Through Hole	100 µF	Radial Can	General Purpose	85 °C	-40 °C	16 V
Panasonic Industrial Automation Sales ECA-1CM470I	221 mA	2000 Hrs	130 mA	0.472 "	12 mm	Polar	0.098 in	2.5 mm	20 %	0.197 "	5 mm	Through Hole	47 µF	Radial Can	General Purpose	85 °C	-40 °C	16 V
Panasonic Industrial Automation Sales ECA-1CM220I	127.5 mA	2000 Hrs	75 mA	0.472 "	12 mm	Polar	0.098 in	2.5 mm	20 %	0.197 "	5 mm	Through Hole	22 µF	Radial Can	General Purpose	85 °C	-40 °C	16 V
Panasonic Industrial Automation Sales ECA-1CM332B	2.04 A	2000 Hrs	1.2 A	1.063 in	27 mm	Polar	0.197 in	5 mm	20 %	0.492 in	12.5 mm	Through Hole	3.3 mF	Radial Can	General Purpose	85 °C	-40 °C	16 V
Panasonic Industrial Automation Sales ECA-1CM331	595 mA	2000 Hrs				Polar	0.138 in	3.5 mm	20 %	0.315 "	8 mm	Through Hole	330 µF	Radial Can	General Purpose	85 °C	-40 °C	16 V	0.492 in	12.5 mm
Panasonic Industrial Automation Sales ECA-1CM330I	187 mA	2000 Hrs	110 mA	0.472 "	12 mm	Polar	0.098 in	2.5 mm	20 %	0.197 "	5 mm	Through Hole	33 ÁF	Radial Can	General Purpose	85 °C	-40 °C	16 V
Panasonic Industrial Automation Sales ECA-1CM102	1.156 A	2000 Hrs	680 mA	0.669 in	17 mm	Polar	0.197 in	5 mm	20 %	0.394 in	10 mm	Through Hole	1000 µF	Radial Can	General Purpose	85 °C	-40 °C	16 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.07
		10	$ 0.77
		50	$ 0.67
		100	$ 0.55
	Tape & Box (TB)	500	$ 0.45
		1000	$ 0.39
		2500	$ 0.36
		5000	$ 0.34
		12500	$ 0.32
		25000	$ 0.32

Description

General part information

ECA-1CM Series

3300 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C

Documents

Technical documentation and resources

ECA-xxM Spec Sheet

Datasheet
