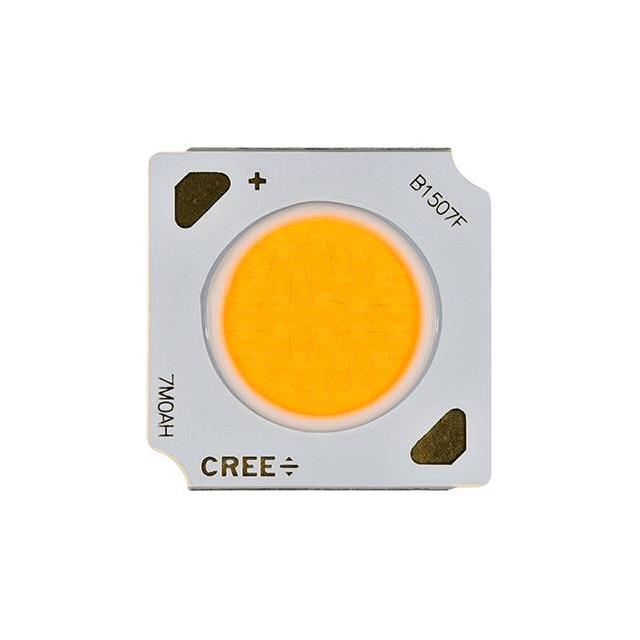

CMB1516-0000-000N0B0A57E

Active

Cree LED

LED COB XLAMP COOL WHT SQU 5700K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMB1516-0000-000N0B0A57E

Active

Cree LED

LED COB XLAMP COOL WHT SQU 5700K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	270	$ 3.52

Description

General part information

CMB1516 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CMB1516 White, Cool Square

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CMB1516-0000-000N0B0A57E	CMB1516 Series

CCT (K)	5700 K	2700 - 6500 K
Color	Cool, White	Neutral, White, Cool, Warm
Configuration	Square	Square
CRI (Color Rendering Index)	70	70 - 95
Current - Max [Max]	1.2 A	1.2 A
Current - Test	450 mA	450 mA
Height [z]	1.75 mm	1.75 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	9 mm	9 mm
Lumens/Watt @ Current - Test	179 lm/W	127 - 180 lm/W
Luminous Flux @ Current/Temperature	2746 lm	1941 - 2749 lm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	115 °	115 °
Voltage - Forward (Vf) (Typ)	34 V	34 V

CMB1516 Series

XLAMP CMB LED WHITE PRO9

Part	Height [z]	CRI (Color Rendering Index)	Temperature - Test	Light Emitting Surface (LES) [diameter]	Configuration	Viewing Angle	Voltage - Forward (Vf) (Typ)	Color	Current - Max [Max]	Current - Test	Lens Type	Type	CCT (K)	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test
Cree LED CMB1516-R108-00PN0U0A40H	1.75 mm	90	85 °C	9 mm	Square	115 °	34 V	Neutral, White	1.2 A	450 mA	Flat	Chip On Board (COB)	4000 K
Cree LED CMB1516-0000-000N0U0A50G	1.75 mm	90	85 °C	9 mm	Square	115 °	34 V	Cool, White	1.2 A	450 mA	Flat	Chip On Board (COB)		2130 lm	139 lm/W
Cree LED CMB1516-R108-00PN0Z0A40H	1.75 mm	95	85 °C	9 mm	Square	115 °	34 V	Neutral, White	1.2 A	450 mA	Flat	Chip On Board (COB)	4000 K
Cree LED CMB1516-R108-000N0H0A30G	1.75 mm	80	85 °C	9 mm	Square	115 °	34 V	Warm, White	1.2 A	450 mA	Flat	Chip On Board (COB)	3000 K	2372 lm	155 lm/W
Cree LED CMB1516-R108-00PN0U0A27H	1.75 mm	90	85 °C	9 mm	Square	115 °	34 V	Warm, White	1.2 A	450 mA	Flat	Chip On Board (COB)	2700 K
Cree LED CMB1516-0000-000N0H0A50G	1.75 mm	80	85 °C	9 mm	Square	115 °	34 V	Cool, White	1.2 A	450 mA	Flat	Chip On Board (COB)			161 lm/W
Cree LED CMB1516-0000-000N0U0A35G	1.75 mm	90	85 °C	9 mm	Square	115 °	34 V	Warm, White	1.2 A	450 mA	Flat	Chip On Board (COB)	3500 K	2090 lm	137 lm/W
Cree LED CMB1516-0000-000N0B0A40E	1.75 mm	70	85 °C	9 mm	Square	115 °	34 V	Neutral, White	1.2 A	450 mA	Flat	Chip On Board (COB)	4000 K	2696 lm	176 lm/W
Cree LED CMB1516-R108-00PN0U0A40G	1.75 mm	90	85 °C	9 mm	Square	115 °	34 V	Neutral, White	1.2 A	450 mA	Flat	Chip On Board (COB)	4000 K
Cree LED CMB1516-R108-000N0H0A40G	1.75 mm	80	85 °C	9 mm	Square	115 °	34 V	Neutral, White	1.2 A	450 mA	Flat	Chip On Board (COB)	4000 K	2435 lm	159 lm/W
