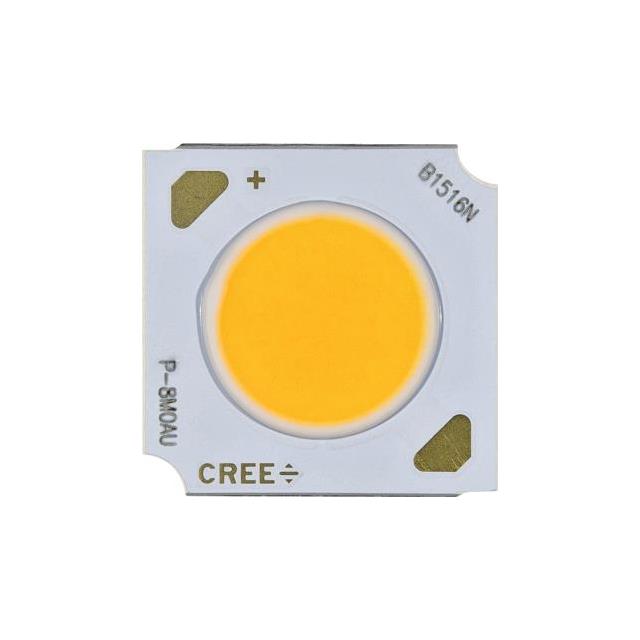

CMB1516-R108-00PN0U0A40G
ActiveCree LED
XLAMP CMB LED WHITE PRO9
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CMB1516-R108-00PN0U0A40G
ActiveCree LED
XLAMP CMB LED WHITE PRO9
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CMB1516-R108-00PN0U0A40G | CMB1516 Series |
|---|---|---|
| CCT (K) | 4000 K | 2700 - 6500 K |
| Color | Neutral, White | Neutral, White, Cool, Warm |
| Configuration | Square | Square |
| CRI (Color Rendering Index) | 90 | 70 - 95 |
| Current - Max [Max] | 1.2 A | 1.2 A |
| Current - Test | 450 mA | 450 mA |
| Height [z] | 1.75 mm | 1.75 mm |
| Lens Type | Flat | Flat |
| Light Emitting Surface (LES) [diameter] | 9 mm | 9 mm |
| Lumens/Watt @ Current - Test | - | 127 - 180 lm/W |
| Luminous Flux @ Current/Temperature | - | 1941 - 2749 lm |
| Temperature - Test | 85 °C | 85 °C |
| Type | Chip On Board (COB) | Chip On Board (COB) |
| Viewing Angle | 115 ° | 115 ° |
| Voltage - Forward (Vf) (Typ) | 34 V | 34 V |
CMB1516 Series
XLAMP CMB LED WHITE PRO9
| Part | Height [z] | CRI (Color Rendering Index) | Temperature - Test | Light Emitting Surface (LES) [diameter] | Configuration | Viewing Angle | Voltage - Forward (Vf) (Typ) | Color | Current - Max [Max] | Current - Test | Lens Type | Type | CCT (K) | Luminous Flux @ Current/Temperature | Lumens/Watt @ Current - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cree LED CMB1516-R108-00PN0U0A40H | 1.75 mm | 90 | 85 °C | 9 mm | Square | 115 ° | 34 V | Neutral, White | 1.2 A | 450 mA | Flat | Chip On Board (COB) | 4000 K | ||
Cree LED CMB1516-0000-000N0U0A50G | 1.75 mm | 90 | 85 °C | 9 mm | Square | 115 ° | 34 V | Cool, White | 1.2 A | 450 mA | Flat | Chip On Board (COB) | 2130 lm | 139 lm/W | |
Cree LED CMB1516-R108-00PN0Z0A40H | 1.75 mm | 95 | 85 °C | 9 mm | Square | 115 ° | 34 V | Neutral, White | 1.2 A | 450 mA | Flat | Chip On Board (COB) | 4000 K | ||
Cree LED CMB1516-R108-000N0H0A30G | 1.75 mm | 80 | 85 °C | 9 mm | Square | 115 ° | 34 V | Warm, White | 1.2 A | 450 mA | Flat | Chip On Board (COB) | 3000 K | 2372 lm | 155 lm/W |
Cree LED CMB1516-R108-00PN0U0A27H | 1.75 mm | 90 | 85 °C | 9 mm | Square | 115 ° | 34 V | Warm, White | 1.2 A | 450 mA | Flat | Chip On Board (COB) | 2700 K | ||
Cree LED CMB1516-0000-000N0H0A50G | 1.75 mm | 80 | 85 °C | 9 mm | Square | 115 ° | 34 V | Cool, White | 1.2 A | 450 mA | Flat | Chip On Board (COB) | 161 lm/W | ||
Cree LED CMB1516-0000-000N0U0A35G | 1.75 mm | 90 | 85 °C | 9 mm | Square | 115 ° | 34 V | Warm, White | 1.2 A | 450 mA | Flat | Chip On Board (COB) | 3500 K | 2090 lm | 137 lm/W |
Cree LED CMB1516-0000-000N0B0A40E | 1.75 mm | 70 | 85 °C | 9 mm | Square | 115 ° | 34 V | Neutral, White | 1.2 A | 450 mA | Flat | Chip On Board (COB) | 4000 K | 2696 lm | 176 lm/W |
Cree LED CMB1516-R108-00PN0U0A40G | 1.75 mm | 90 | 85 °C | 9 mm | Square | 115 ° | 34 V | Neutral, White | 1.2 A | 450 mA | Flat | Chip On Board (COB) | 4000 K | ||
Cree LED CMB1516-R108-000N0H0A40G | 1.75 mm | 80 | 85 °C | 9 mm | Square | 115 ° | 34 V | Neutral, White | 1.2 A | 450 mA | Flat | Chip On Board (COB) | 4000 K | 2435 lm | 159 lm/W |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 108 | $ 5.56 | |
Description
General part information
CMB1516 Series
LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CMB1516 White, Neutral Square
