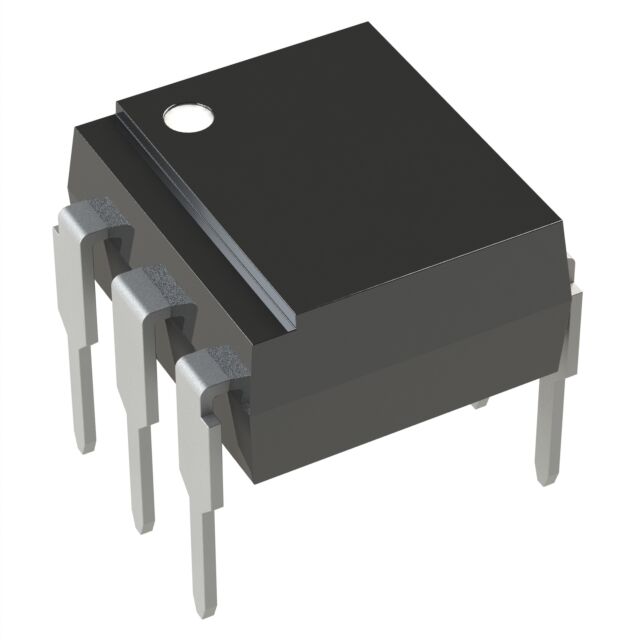

LTV-715F

Active

Diodes Inc

OPTOISOLATOR 5KV 1CH DARL 6-DIP

Search across all available documentation for this part.

Active

Diodes Inc

OPTOISOLATOR 5KV 1CH DARL 6-DIP

Technical Specifications

Parameters and characteristics for this part

Specification	LTV-715F

Current - DC Forward (If) (Max)	50 mA
Current - Output / Channel	80 mA
Current Transfer Ratio (Max)	7500 %
Current Transfer Ratio (Min) [Min]	600 %
Input Type	DC
Mounting Type	Through Hole
Number of Channels	1
Operating Temperature [custom]	100 °C, -25 °C
Output Type	Darlington
Package / Case	6-DIP
Package / Case	0.3 in
Package / Case	7.62 mm
Rise / Fall Time (Typ) [custom]	60 µs
Rise / Fall Time (Typ) [custom]	53 µs
Supplier Device Package	6-DIP
Vce Saturation (Max) [Max]	1 V
Voltage - Output (Max) [Max]	35 V

Part	Current - DC Forward (If) (Max)	Current Transfer Ratio (Max)	Vce Saturation (Max) [Max]	Current - Output / Channel	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Output Type	Supplier Device Package	Input Type	Voltage - Output (Max) [Max]	Package / Case	Package / Case	Package / Case	Mounting Type	Current Transfer Ratio (Min) [Min]	Number of Channels	Operating Temperature [custom]
Diodes Inc LTV-715F	50 mA	7500 %	1 V	80 mA	60 µs	53 µs	Darlington	6-DIP	DC	35 V	6-DIP	0.3 in	7.62 mm	Through Hole	600 %	1	-25 °C 100 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	5200	$ 0.18

General part information

Optoisolator Darlington Output 5000Vrms 1 Channel 6-DIP
