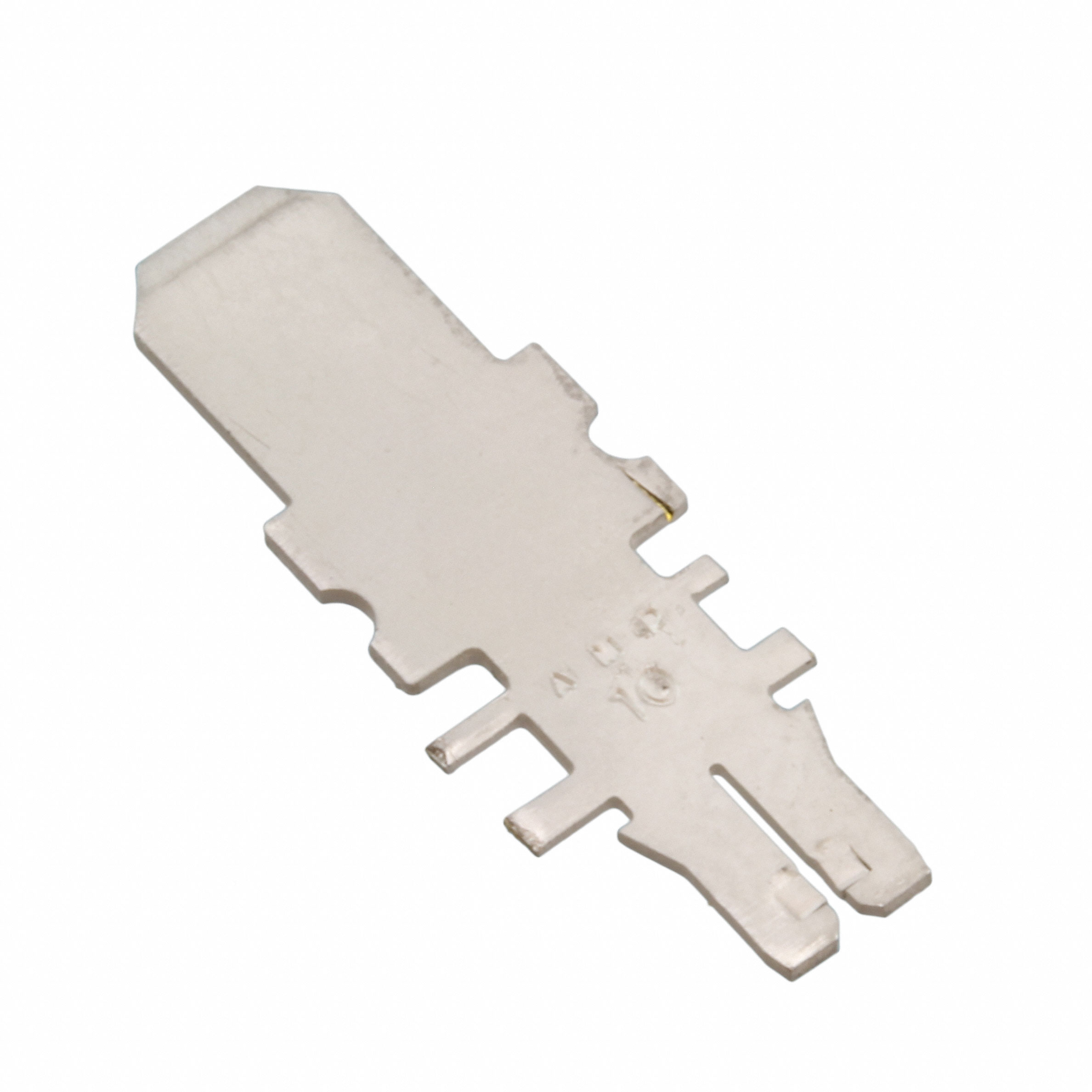

1217497-2
ActiveTE Connectivity AMP Connectors
CONN MAG TERM 24-27AWG IDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1217497-2
ActiveTE Connectivity AMP Connectors
CONN MAG TERM 24-27AWG IDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1217497-2 | 1217497 Series |
|---|---|---|
| Features | QC .187 | QC .187 |
| Terminal Type | Quick Connect Tab Terminal | Quick Connect Tab Terminal |
| Termination | IDC | IDC |
| Wire Gauge [Max] | 27 AWG | 27 AWG |
| Wire Gauge [Min] | 24 AWG | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.27 | |
| Tape & Reel (TR) | 80000 | $ 0.07 | ||
1217497 Series
CONN MAG TERM 24-27AWG IDC
Description
General part information
1217497 Series
Terminal Magnetic Connector 24-27 AWG IDC
