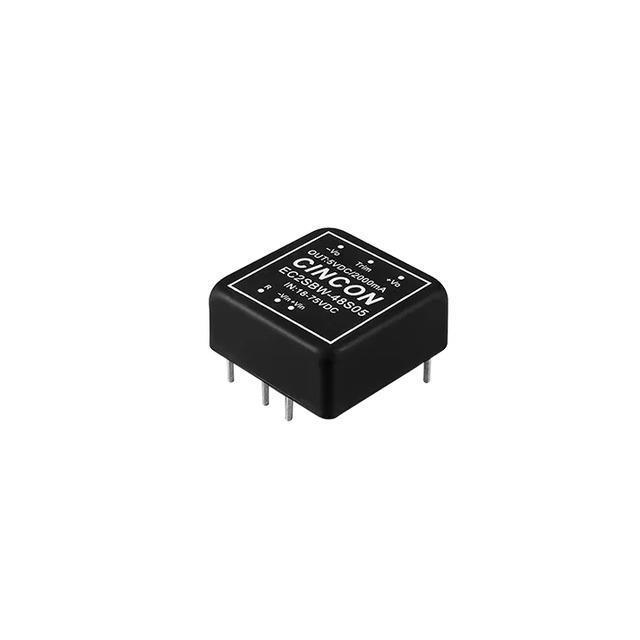

EC2SBW-24S12H

Active

Cincon Electronics Co. LTD

ISOLATED DC/DC CONVERTERS 10W

Search across all available documentation for this part.

Active

Cincon Electronics Co. LTD

ISOLATED DC/DC CONVERTERS 10W

Technical Specifications

Parameters and characteristics for this part

Specification	EC2SBW-24S12H

Applications	ITE (Commercial)
Approval Agency	UKCA, CE
Control Features	Active High, Enable
Current - Output (Max) [Max]	833 mA
Efficiency	89 %
Features	Remote On/Off, Adjustable Output
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	105 C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	10 W
Size / Dimension [x]	1 in
Size / Dimension [x]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Standard Number	62368-1
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Voltage - Input (Min) [Min]	Package / Case	Voltage - Output 2	Approval Agency	Current - Output (Max)	Current - Output (Max)	Features	Power (Watts)	Standard Number	Voltage - Isolation	Voltage - Input (Max) [Max]	Control Features	Number of Outputs	Type	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output 1	Mounting Type	Applications	Efficiency	Current - Output (Max) [Max]
Cincon Electronics Co. LTD EC2SBW-48D05N	18 V	6-DIP Module	-5 V	CE	1 A	1 A	OCP OVP Remote On/Off SCP UVLO	10 W	60950-1	1.5 kV	75 V	Active Low Enable	2	Isolated Module	85 °C	-40 °C	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	5 V	Through Hole	ITE (Commercial)	84 %
Cincon Electronics Co. LTD EC2SBW-24S12H	9 V	6-DIP Module		CE UKCA			Adjustable Output Remote On/Off	10 W	62368-1	3000 V	36 V	Active High Enable	1	Isolated Module	105 C	-40 °C	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	12 V	Through Hole	ITE (Commercial)	89 %	833 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 22.42

General part information

Isolated Module DC DC Converter 1 Output 12V 833mA 9V - 36V Input
