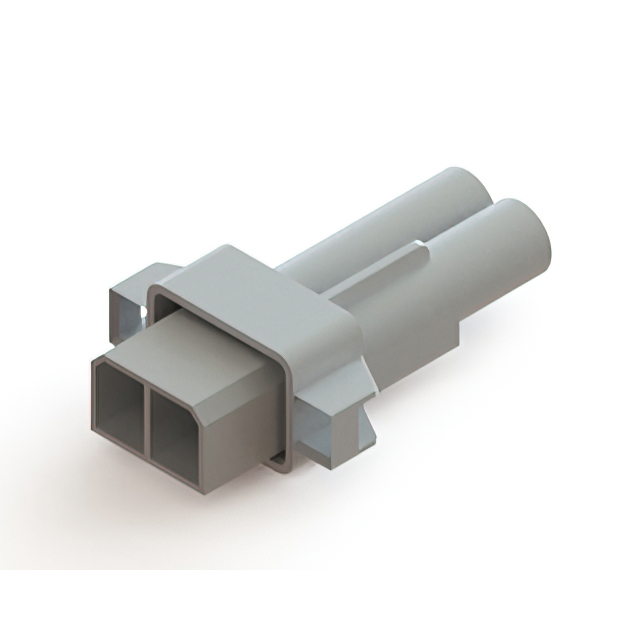

567-002-000-310

Active

EDAC Inc.

CONN PLUG HSG 2POS 5.00MM

Search across all available documentation for this part.

Active

EDAC Inc.

CONN PLUG HSG 2POS 5.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	567-002-000-310

Color	White
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Waterproof
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in

Part	Contact Type	Number of Rows	Color	Fastening Type	Insulation Material	Number of Positions	Note	Features	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Connector Type	Contact Termination	Mounting Type
EDAC Inc. 567-002-000-410	Female Socket	1	White	Latch Lock	Polybutylene Terephthalate (PBT)	2	Contacts Not Included	Waterproof	-40 °C	105 ░C	5 mm	0.197 in	Receptacle	Crimp	Free Hanging (In-Line)
EDAC Inc. 567-002-000-310	Male Pin	1	White	Latch Holder	Polybutylene Terephthalate (PBT)	2	Contacts Not Included	Waterproof	-40 °C	105 ░C	5 mm	0.197 in	Plug	Crimp	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	250	$ 1.50

General part information

2 Rectangular Connectors - Housings Plug White 0.197" (5.00mm)
