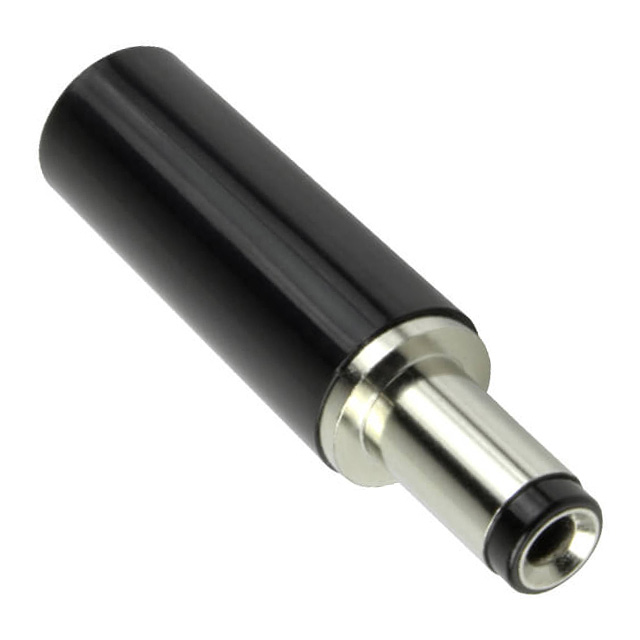

PP3-050A

Active

CUI Devices

POWER PLUG, 2.1 X 5.0 X 9.5 MM,

Search across all available documentation for this part.

Active

CUI Devices

POWER PLUG, 2.1 X 5.0 X 9.5 MM,

Technical Specifications

Parameters and characteristics for this part

Specification	PP3-050A

Actual Diameter [custom]	2.1 mm, 0.083 in
Actual Diameter [custom]	0.197 in, 5 mm
Body Color	Silver, Black
Body Material	Brass
Connector Type	Plug
Contact Material	Brass
Contact Material - Plating [custom]	Nickel
Current Rating (Amps)	5 A
Features	Cover
Gender	Female
Housing Material	Acrylonitrile Butadiene Styrene (ABS)
Includes	1 Connector, 1 Cover
Industry Recognized Mating Diameter	5 mm, 2.1 mm
Industry Recognized Mating Diameter	0.083 in, 0.197 in
Insulation Color	Black
Internal Switch(s)	False
Mating Length/Depth	0.374 in
Mating Length/Depth	9.5 mm
Mounting Type	Free Hanging (In-Line)
Number of Positions/Contacts [custom]	2
Number of Positions/Contacts [custom]	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Voltage - Rated	20 V

Part	Body Color	Features	Contact Material	Shielding	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Actual Diameter [custom]	Actual Diameter [custom]	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Insulation Color	Voltage - Rated	Body Material	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Current Rating (Amps)	Connector Type	Gender	Contact Material - Plating [custom]	Mating Length/Depth	Mating Length/Depth	Housing Material	Includes	Actual Diameter [custom]	Actual Diameter [custom]	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]
CUI Devices PP3-050A	Black Silver	Cover	Brass	Unshielded	Free Hanging (In-Line)	70 °C	-25 °C	0.083 in 2.1 mm	0.197 in 5 mm	2.1 mm 5 mm	0.083 in 0.197 in	Black	20 V	Brass	2	2	5 A	Plug	Female	Nickel	0.374 in	9.5 mm	Acrylonitrile Butadiene Styrene (ABS)	1 Connector 1 Cover
CUI Devices PP3-050A	Black Silver	Cover	Brass	Unshielded	Free Hanging (In-Line)	70 °C	-25 °C	0.083 in 2.1 mm	0.197 in 5 mm	2.1 mm 5 mm	0.083 in 0.197 in	Black	20 V	Brass	2	2	5 A	Plug	Female	Nickel	0.374 in	9.5 mm	Acrylonitrile Butadiene Styrene (ABS)	1 Connector 1 Cover
CUI Devices PP3-050B	Black Silver	Cover	Brass	Unshielded	Free Hanging (In-Line)	70 °C	-25 °C	2.5 mm	5 mm			Black	20 V	Brass	2	2	5 A	Plug	Female	Nickel	0.374 in	9.5 mm	Acrylonitrile Butadiene Styrene (ABS)	1 Connector 1 Cover	0.098 in	0.197 in	2.5 mm 5 mm	0.098 " 0.197 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector Plug 2.10mm ID (0.083"), 5.00mm OD (0.197") Free Hanging (In-Line)
