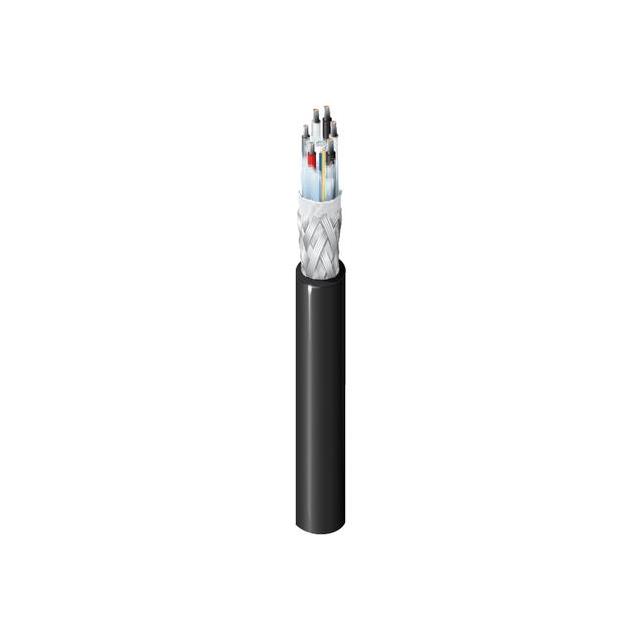

7825P 8771000

Active

Belden Inc.

COMPOSITE CABLE BRD FLRST

Search across all available documentation for this part.

Active

Belden Inc.

COMPOSITE CABLE BRD FLRST

Technical Specifications

Parameters and characteristics for this part

Specification	7825P 8771000

Cable Type	Multi-Conductor
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7, 19
Conductor Strand [custom]	30 AWG, 29 AWG
Jacket (Insulation) Diameter [diameter]	0.212 "
Jacket (Insulation) Diameter [diameter]	5.38 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Natural
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Ratings	UL Style CMP
Shield Coverage	95 %
Shield Material	Copper, Tinned
Shield Type	Braid
Wire Gauge	22 AWG, 16 AWG

Part	Shield Type	Jacket (Insulation) Material	Ratings	Wire Gauge	Shield Material	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Jacket Color	Shield Coverage	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Length	Length
Belden Inc. 7825P 8772000	Braid	Poly-Vinyl Chloride (PVC)	UL Style CMP	16 AWG 22 AWG	Copper Tinned	-20 C	60 °C	Copper Tinned	Natural	95 %	609.6 m	2000 ft	7 19	29 AWG 30 AWG	Multi-Conductor	4	0.212 "	5.38 mm	Fluorinated Ethylene-Propylene (FEP)
Belden Inc. 7825P 8771000	Braid	Poly-Vinyl Chloride (PVC)	UL Style CMP	16 AWG 22 AWG	Copper Tinned	-20 C	60 °C	Copper Tinned	Natural	95 %			7 19	29 AWG 30 AWG	Multi-Conductor	4	0.212 "	5.38 mm	Fluorinated Ethylene-Propylene (FEP)	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.48

General part information

4 Conductor Multi-Conductor Cable Natural 16 AWG, 22 AWG Braid 1000.0' (304.8m)
