Technical Specifications
Parameters and characteristics for this part
| Specification | STEVAL-BLUEMIC-1 |
|---|---|
| For Use With/Related Products | BlueNRG-1 |
| Frequency | 2.4 GHz |
| Supplied Contents | Board(s) |
| Type | Transceiver; Bluetooth® Smart 4.x Low Energy (BLE) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
STEVAL-BLUEMIC-1 Series

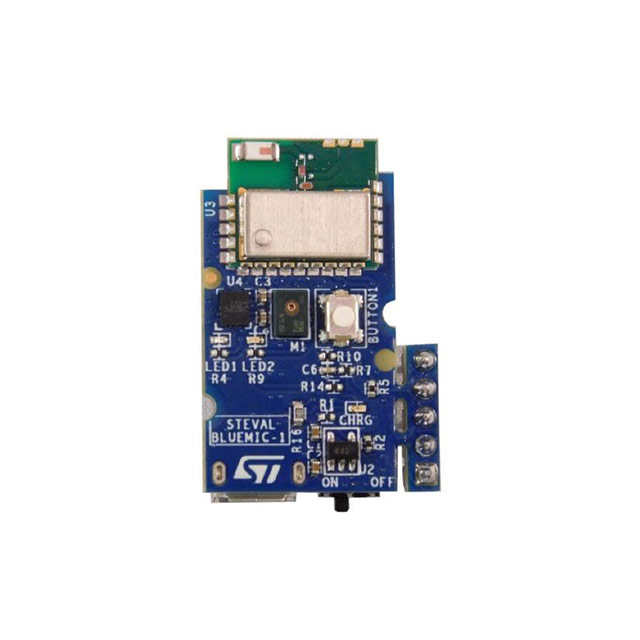

The STEVAL-BLUEMIC-1 evaluation board mounts the SPBTLE-1S Bluetooth®SMART application processor compliant with BT specification v4.2. It supports multiple simultaneous roles and can act as a Bluetooth Smart master and slave device at the same time.
This BLE wireless battery powered solution also embeds digital MEMS microphone MP34DT05-A (or MP34DT04-C1 in the first generation board) and 3D accelerometer + 3D gyroscope, which render this evaluation board suitable for a wide range of advanced smart applications.
The evaluation board comes with a SW development kit that includes the Bluetooth low energy stack, all the drivers for audio and inertial data acquisition, and button and LED management. A ready-to-use BlueVoice library is included as middleware and a sample application is provided to get you started with voice streaming over BLE to an Android or iOS device, running the ST BlueMS apps.
