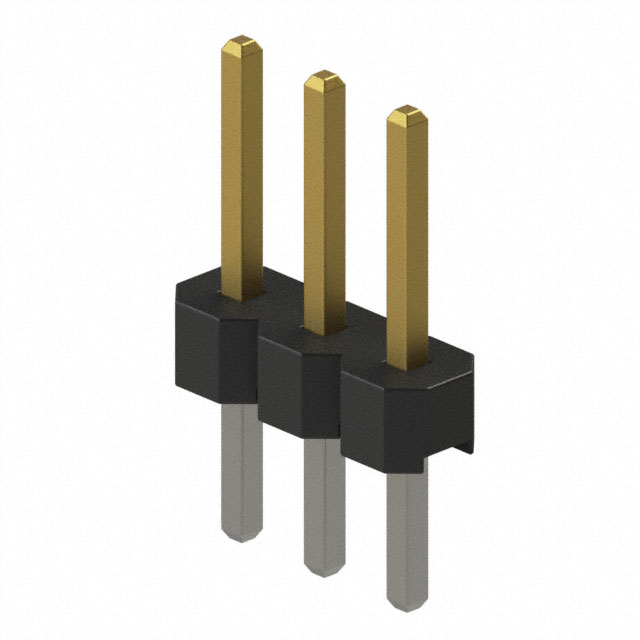

PIN HEADER, PIN HEADER, BOARD-TO-BOARD, 2 MM, 1 ROWS, 3 CONTACTS, THROUGH HOLE STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 951yyy-xx22-AR Series Datasheet +1

951103-8622-AR

Active

3M (TC)

PIN HEADER, PIN HEADER, BOARD-TO-BOARD, 2 MM, 1 ROWS, 3 CONTACTS, THROUGH HOLE STRAIGHT

Deep-Dive with AI

DocumentsDatasheet 951yyy-xx22-AR Series Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	951103-8622-AR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Length - Mating	4.4 mm
Contact Length - Mating	0.173 in
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.06 in
Insulation Height [z]	1.52 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	8.7 mm
Overall Contact Length	0.343 in
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Unshrouded
Termination	Solder

951103 Series

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Number of Rows	Contact Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Material	Overall Contact Length	Overall Contact Length	Termination	Contact Shape	Contact Length - Post [x]	Contact Length - Post	Contact Finish - Post	Contact Finish Thickness - Mating	Connector Type	Number of Positions Loaded	Mounting Type	Shrouding	Material Flammability Rating	Insulation Color	Insulation Height [z]	Insulation Height [z]	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Contact Length - Mating
3M (TC) 951103-8622-AR	1 çm	39.4 çin	Copper Alloy	1	Male Pin	Push-Pull	-55 °C	125 °C	0.079 in	2 mm	Thermoplastic	8.7 mm	0.343 in	Solder	Square	0.11 in	2.79 mm	Tin	Flash	Header	All	Through Hole	Unshrouded	UL94 V-0	Black	0.06 in	1.52 mm	Gold	4.4 mm	0.173 in
3M (TC) 951103-7622-AR	1 çm	39.4 çin	Copper Alloy	1	Male Pin	Push-Pull	-55 °C	125 °C	0.079 in	2 mm	Thermoplastic			Solder	Square	0.11 in	2.79 mm	Tin	Flash	Header	All	Through Hole Right Angle	Unshrouded	UL94 V-0	Black			Gold	4.4 mm	0.173 in	0.079 in	2 mm
3M (TC) 951103-2530-AR-TP	1 çm	39.4 çin	Copper Alloy	1	Male Pin	Push-Pull	-25 °C	105 ░C	0.079 in	2 mm	Thermoplastic			Solder	Square			Tin	Flash	Header	All	Surface Mount	Unshrouded	UL94 V-0	Black	0.06 in	1.52 mm	Gold	4 mm	0.157 in
3M (TC) 951103-7722-AR	1 çm	39.4 çin	Copper Alloy	1	Male Pin	Push-Pull	-55 °C	125 °C	0.079 in	2 mm	Thermoplastic			Solder	Square	0.11 in	2.79 mm	Tin	Flash	Header	All	Through Hole Right Angle	Unshrouded	UL94 V-0	Black			Gold	0.305 in		0.079 in	2 mm	7.75 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.54
		10	$ 0.46
		100	$ 0.39
		500	$ 0.35
		1000	$ 0.33
		5000	$ 0.30
		10000	$ 0.28
Newark	Each	1000	$ 0.16

Description

General part information

951103 Series

The 951103-8622-AR is a 3-way 1-row 2mm Vertical Board-to-board Pin Strip Header with gold-plated copper alloy contacts. This 951 series header comes with high temperature thermoplastic insulation, 4.4mm mating pin and solder tail mounting. It mates with board mount and wire mount products.
