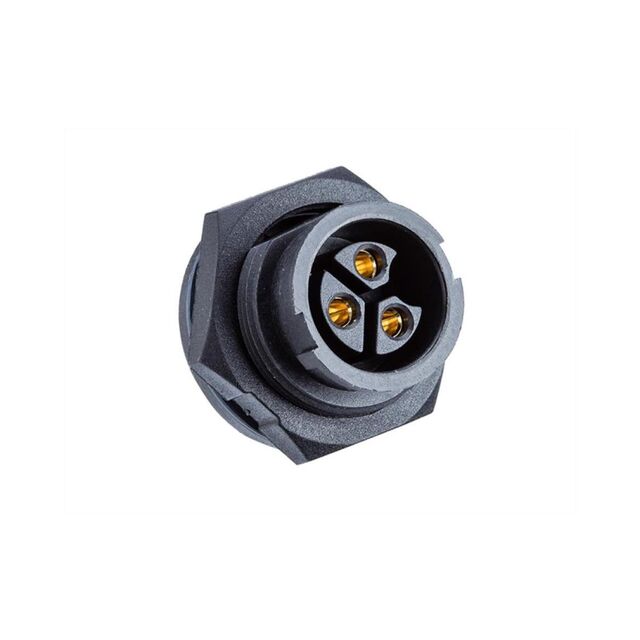

PWC-03PMFS-LC7001

Active

Amphenol LTW

POWER, PWC, PLASTIC, 20A, 03 PINS, MALE CONNECTOR, FEMALE CONTACT, CIRCULAR, 2 POINTS LOCK, SOLDER, RECEPTACLE, IP67 ROHS COMPLI

Search across all available documentation for this part.

Active

Amphenol LTW

POWER, PWC, PLASTIC, 20A, 03 PINS, MALE CONNECTOR, FEMALE CONTACT, CIRCULAR, 2 POINTS LOCK, SOLDER, RECEPTACLE, IP67 ROHS COMPLI

Technical Specifications

Parameters and characteristics for this part

Specification	PWC-03PMFS-LC7001

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	20 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shielding	Unshielded
Voltage Rating	277 V

Part	Insert Material	Current Rating (Amps)	Connector Type	Color	Orientation	Mounting Feature	Primary Material	Fastening Type	Ingress Protection	Contact Material	Voltage Rating	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Shell Material
Amphenol LTW PWC-03PMFS-LC7001	Polyamide (PA) Nylon Glass Filled	20 A	Receptacle Female Sockets	Black	Keyed	Bulkhead - Front Side Nut	Plastic	Bayonet Lock	IP67 - Dust Tight Waterproof	Copper Alloy	277 V	Gold	-40 °C	105 ░C	Unshielded	Glass Filled Nylon Polyamide (PA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Female Sockets Solder Cup
