160X10639X

Active

Amphenol CONEC

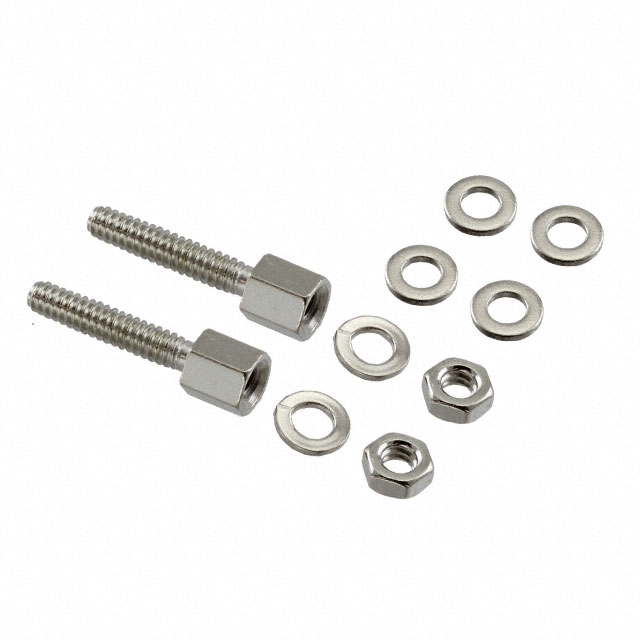

HEX LOCKING SCREW SET 19MM

Search across all available documentation for this part.

Active

Amphenol CONEC

HEX LOCKING SCREW SET 19MM

Technical Specifications

Parameters and characteristics for this part

Specification	160X10639X

Accessory Type	Jackscrew Socket
Features	Hardware Included
For Use With/Related Products	D-Sub Connectors
Length - Below Head	0.551 in
Length - Below Head	14 mm
Length - Threaded Portion Below Head [x]	13.4 mm
Length - Threaded Portion Below Head [x]	0.528 in
Thread Size	4-40 Screw, 4-40 Socket

Part	Thread Size	For Use With/Related Products	Accessory Type	Features	Length - Threaded Portion Below Head [x]	Length - Threaded Portion Below Head [x]	Length - Below Head	Length - Below Head	Number of Positions	Features [Min]	Features [Max]
Amphenol CONEC 160X10639X	4-40 Screw 4-40 Socket	D-Sub Connectors	Jackscrew Socket	Hardware Included	13.4 mm	0.528 in	0.551 in	14 mm
Amphenol CONEC 160X10629X
Amphenol CONEC 160X10689X		D-Sub Connectors	Slide Lock						9	4	40
Amphenol CONEC 160X10699X		D-Sub Connectors	Slide Lock						15	4	40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jackscrew Socket For D-Sub Connectors
