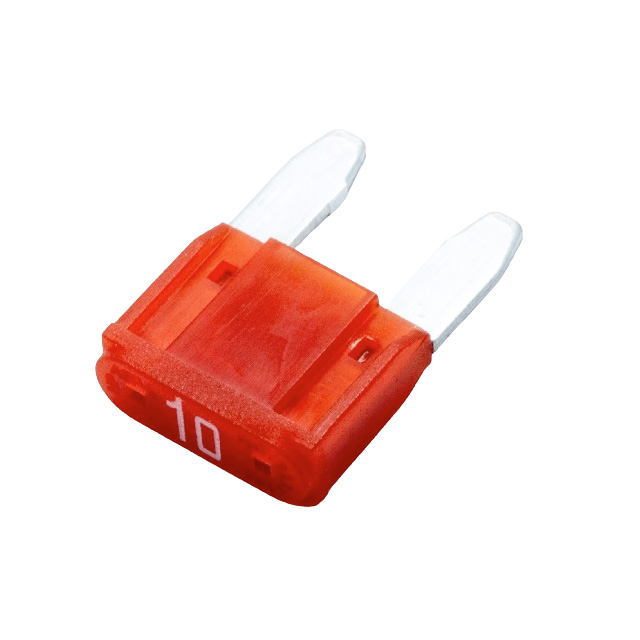

ANM-I-10A
ActiveOptiFuse
FUSE AUTO 10A 32VDC BLADE MINI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANM-I-10A
ActiveOptiFuse
FUSE AUTO 10A 32VDC BLADE MINI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ANM-I-10A | ANM-I Series |
|---|---|---|
| Approval Agency | ISO, SAE | ISO, SAE |
| Breaking Capacity @ Rated Voltage | 1 kA | 1 kA |
| Color | Red | Violet, Tan, Yellow, Gray, Clear, Pink, Green, Red, Brown |
| Current Rating (Amps) | 10 A | 2 - 30 A |
| Fuse Type | Automotive | Automotive |
| Mounting Type | Requires Holder | Requires Holder |
| Package / Case | Blade, Miniature | Blade, Miniature |
| Response Time | Fast Blow | Fast Blow |
| Size / Dimension [x] | 0.429 " | 0.429 " |
| Size / Dimension [x] | 10.9 mm | 10.9 mm |
| Size / Dimension [y] | 0.15 " | 0.15 " |
| Size / Dimension [y] | 3.8 mm | 3.8 mm |
| Size / Dimension [z] | 9.2 mm | 9.2 mm |
| Size / Dimension [z] | 0.362 in | 0.362 in |
| Voltage Rating - DC | 32 V | 32 V |
ANM-I Series
FUSE AUTOMOTIVE 3A 32VDC BLADE
| Part | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Approval Agency | Response Time | Mounting Type | Fuse Type | Package / Case | Voltage Rating - DC | Breaking Capacity @ Rated Voltage | Color | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
OptiFuse ANM-I-3A | 9.2 mm | 0.15 " | 0.362 in | 3.8 mm | 0.429 " | 10.9 mm | ISO, SAE | Fast Blow | Requires Holder | Automotive | Blade, Miniature | 32 V | 1 kA | Violet | 3 A |
OptiFuse ANM-I-5A | 9.2 mm | 0.15 " | 0.362 in | 3.8 mm | 0.429 " | 10.9 mm | ISO, SAE | Fast Blow | Requires Holder | Automotive | Blade, Miniature | 32 V | 1 kA | Tan | 5 A |
OptiFuse ANM-I-20A | 9.2 mm | 0.15 " | 0.362 in | 3.8 mm | 0.429 " | 10.9 mm | ISO, SAE | Fast Blow | Requires Holder | Automotive | Blade, Miniature | 32 V | 1 kA | Yellow | 20 A |
OptiFuse ANM-I-2A | 9.2 mm | 0.15 " | 0.362 in | 3.8 mm | 0.429 " | 10.9 mm | ISO, SAE | Fast Blow | Requires Holder | Automotive | Blade, Miniature | 32 V | 1 kA | Gray | 2 A |
OptiFuse ANM-I-25A | 9.2 mm | 0.15 " | 0.362 in | 3.8 mm | 0.429 " | 10.9 mm | ISO, SAE | Fast Blow | Requires Holder | Automotive | Blade, Miniature | 32 V | 1 kA | Clear | 25 A |
OptiFuse ANM-I-4A | 9.2 mm | 0.15 " | 0.362 in | 3.8 mm | 0.429 " | 10.9 mm | ISO, SAE | Fast Blow | Requires Holder | Automotive | Blade, Miniature | 32 V | 1 kA | Pink | 4 A |
OptiFuse ANM-I-30A | 9.2 mm | 0.15 " | 0.362 in | 3.8 mm | 0.429 " | 10.9 mm | ISO, SAE | Fast Blow | Requires Holder | Automotive | Blade, Miniature | 32 V | 1 kA | Green | 30 A |
OptiFuse ANM-I-10A | 9.2 mm | 0.15 " | 0.362 in | 3.8 mm | 0.429 " | 10.9 mm | ISO, SAE | Fast Blow | Requires Holder | Automotive | Blade, Miniature | 32 V | 1 kA | Red | 10 A |
OptiFuse ANM-I-7.5A | 9.2 mm | 0.15 " | 0.362 in | 3.8 mm | 0.429 " | 10.9 mm | ISO, SAE | Fast Blow | Requires Holder | Automotive | Blade, Miniature | 32 V | 1 kA | Brown | 7.5 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.13 | |
| 10 | $ 1.10 | |||
| 25 | $ 1.07 | |||
| 50 | $ 0.90 | |||
| 100 | $ 0.74 | |||
| 250 | $ 0.67 | |||
| 500 | $ 0.56 | |||
| 1000 | $ 0.49 | |||
Description
General part information
ANM-I Series
10 A AC 32 V DC Fuse Automotive Requires Holder Blade, Miniature
