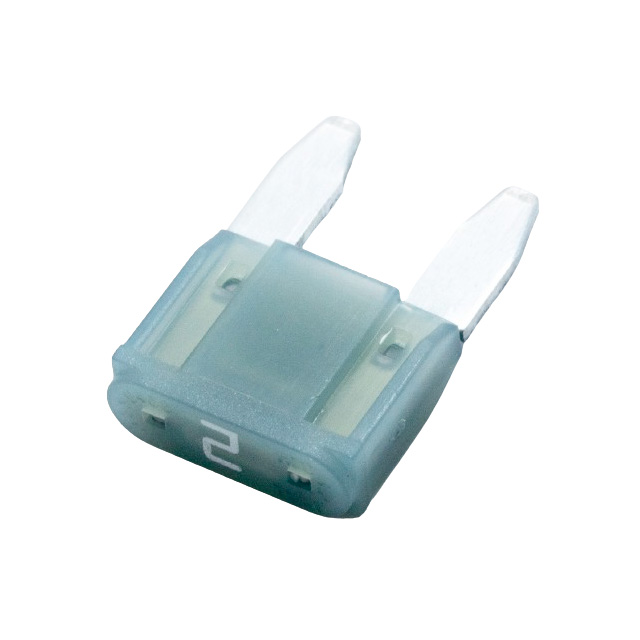

ANM-I-2A

Active

OptiFuse

FUSE AUTOMOTIVE 2A 32VDC BLADE

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTOMOTIVE 2A 32VDC BLADE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.13

General part information

2 A AC 32 V DC Fuse Automotive Requires Holder Blade, Miniature

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	ANM-I-2A	ANM-I Series

Approval Agency	ISO, SAE	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA	1 kA
Color	Gray	Violet, Tan, Yellow, Gray, Clear, Pink, Green, Red, Brown
Current Rating (Amps)	2 A	2 - 30 A
Fuse Type	Automotive	Automotive
Mounting Type	Requires Holder	Requires Holder
Package / Case	Blade, Miniature	Blade, Miniature
Response Time	Fast Blow	Fast Blow
Size / Dimension [x]	0.429 "	0.429 "
Size / Dimension [x]	10.9 mm	10.9 mm
Size / Dimension [y]	0.15 "	0.15 "
Size / Dimension [y]	3.8 mm	3.8 mm
Size / Dimension [z]	9.2 mm	9.2 mm
Size / Dimension [z]	0.362 in	0.362 in
Voltage Rating - DC	32 V	32 V

FUSE AUTOMOTIVE 3A 32VDC BLADE

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Approval Agency	Response Time	Mounting Type	Fuse Type	Package / Case	Voltage Rating - DC	Breaking Capacity @ Rated Voltage	Color	Current Rating (Amps)
OptiFuse ANM-I-3A	9.2 mm	0.15 "	0.362 in	3.8 mm	0.429 "	10.9 mm	ISO, SAE	Fast Blow	Requires Holder	Automotive	Blade, Miniature	32 V	1 kA	Violet	3 A
OptiFuse ANM-I-5A	9.2 mm	0.15 "	0.362 in	3.8 mm	0.429 "	10.9 mm	ISO, SAE	Fast Blow	Requires Holder	Automotive	Blade, Miniature	32 V	1 kA	Tan	5 A
OptiFuse ANM-I-20A	9.2 mm	0.15 "	0.362 in	3.8 mm	0.429 "	10.9 mm	ISO, SAE	Fast Blow	Requires Holder	Automotive	Blade, Miniature	32 V	1 kA	Yellow	20 A
OptiFuse ANM-I-2A	9.2 mm	0.15 "	0.362 in	3.8 mm	0.429 "	10.9 mm	ISO, SAE	Fast Blow	Requires Holder	Automotive	Blade, Miniature	32 V	1 kA	Gray	2 A
OptiFuse ANM-I-25A	9.2 mm	0.15 "	0.362 in	3.8 mm	0.429 "	10.9 mm	ISO, SAE	Fast Blow	Requires Holder	Automotive	Blade, Miniature	32 V	1 kA	Clear	25 A
OptiFuse ANM-I-4A	9.2 mm	0.15 "	0.362 in	3.8 mm	0.429 "	10.9 mm	ISO, SAE	Fast Blow	Requires Holder	Automotive	Blade, Miniature	32 V	1 kA	Pink	4 A
OptiFuse ANM-I-30A	9.2 mm	0.15 "	0.362 in	3.8 mm	0.429 "	10.9 mm	ISO, SAE	Fast Blow	Requires Holder	Automotive	Blade, Miniature	32 V	1 kA	Green	30 A
OptiFuse ANM-I-10A	9.2 mm	0.15 "	0.362 in	3.8 mm	0.429 "	10.9 mm	ISO, SAE	Fast Blow	Requires Holder	Automotive	Blade, Miniature	32 V	1 kA	Red	10 A
OptiFuse ANM-I-7.5A	9.2 mm	0.15 "	0.362 in	3.8 mm	0.429 "	10.9 mm	ISO, SAE	Fast Blow	Requires Holder	Automotive	Blade, Miniature	32 V	1 kA	Brown	7.5 A
