M50-9112042

Active

Harwin Inc.

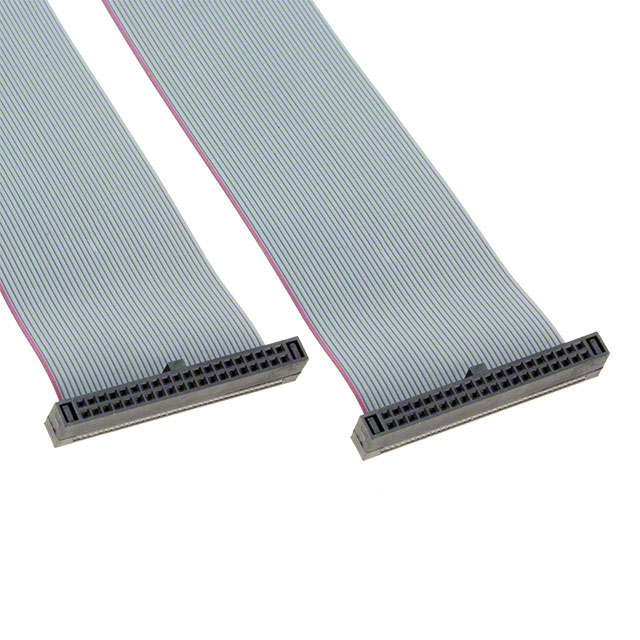

RECEPTACLE TO RECEPTACLE, 300MM, 40WAY

Search across all available documentation for this part.

Active

Harwin Inc.

RECEPTACLE TO RECEPTACLE, 300MM, 40WAY

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Pitch - Connector	Pitch - Connector	Pitch - Cable [x]	Pitch - Cable	Connector Type	Number of Rows	Shielding	Cable Termination	Length [x]	Length [x]	Length [x]	Number of Positions
Harwin Inc. M50-9111042	Gold	0.05 in	1.27 mm	0.025 in	0.64 mm	Socket to Socket	2	Unshielded	IDC	0.984 '	11.81 "	300 mm	20
Harwin Inc. M50-9112042	Gold	0.05 in	1.27 mm	0.025 in	0.64 mm	Socket to Socket	2	Unshielded	IDC	0.984 '	11.81 "	300 mm	40
Harwin Inc. M50-9111342	Gold	0.05 in	1.27 mm	0.025 in	0.64 mm	Socket to Socket	2	Unshielded	IDC	0.984 '	11.81 "	300 mm	26

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Cable Assembly Rectangular Socket to Socket 0.984' (300.00mm, 11.81")
