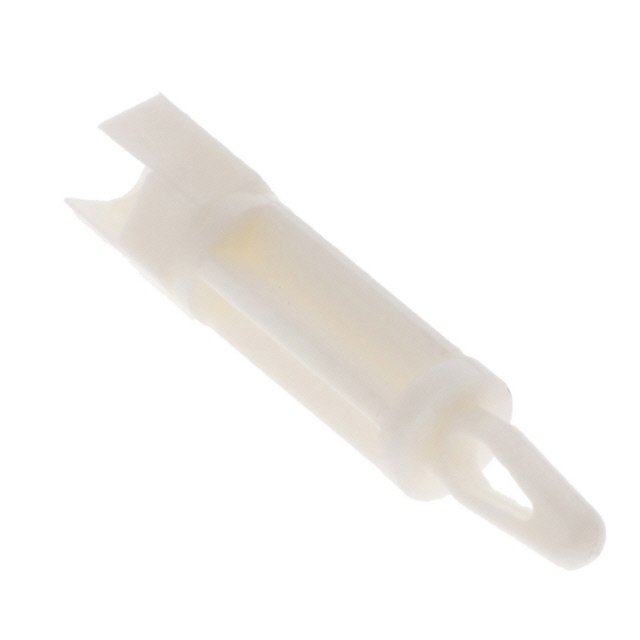

CBS-TF-M4-16-19

Active

Essentra Access Solutions

CBS THREAD FEMALE MOUNT 1"

Search across all available documentation for this part.

Active

Essentra Access Solutions

CBS THREAD FEMALE MOUNT 1"

Technical Specifications

Parameters and characteristics for this part

Specification	CBS-TF-M4-16-19

Between Board Height	1 in
Between Board Height	25.4 mm
Holding Type	Snap Fit, Arrowhead
Material	Nylon, Flame Retardant
Mounting Hole Diameter	M4 Thread
Support Hole Diameter [diameter]	0.15625 in
Support Hole Diameter [diameter]	3.96 mm
Support Hole Diameter [diameter]	0.156 in
Support Panel Thickness	0.0625 "
Support Panel Thickness	0.062 "
Support Panel Thickness	1.57 mm

Part	Length - Overall [x]	Length - Overall [x]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Mounting Type	Between Board Height	Between Board Height	Between Board Height	Holding Type	Features	Material	Mounting Hole Diameter
Essentra Access Solutions CBS-TF-10-19	1.028 in	26.1 mm	0.15625 in	3.96 mm	0.156 in	0.0625 "	0.062 "	1.57 mm	Screw Mount	15.88 mm	0.625 in	0.625 in	Snap Fit	6-32 Thread	Nylon
Essentra Access Solutions CBS-TF-6-19	0.776 in	19.7 mm	0.15625 in	3.96 mm	0.156 in	0.0625 "	0.062 "	1.57 mm	Screw Mount	9.53 mm	0.375 in	0.375 in	Snap Fit	6-32 Thread	Nylon
Essentra Access Solutions CBS-TF-6-01	0.776 in	19.7 mm	0.15625 in	3.96 mm	0.156 in	0.0625 "	0.062 "	1.57 mm	Screw Mount	9.53 mm	0.375 in	0.375 in	Snap Fit	6-32 Thread	Nylon
Essentra Access Solutions CBS-TF-8-19	0.902 in	22.9 mm	0.15625 in	3.96 mm	0.156 in	0.0625 "	0.062 "	1.57 mm	Screw Mount	12.7 mm	0.5 in	0.5 in	Snap Fit	6-32 Thread	Nylon
Essentra Access Solutions CBS-TF-8-01	0.902 in	22.9 mm	0.15625 in	3.96 mm	0.156 in	0.0625 "	0.062 "	1.57 mm	Screw Mount	12.7 mm	0.5 in	0.5 in	Snap Fit	6-32 Thread	Nylon
Essentra Access Solutions CBS-TF-M4-14-01
Essentra Access Solutions CBS-TF-M4-16-19			0.15625 in	3.96 mm	0.156 in	0.0625 "	0.062 "	1.57 mm		25.4 mm	1 in		Arrowhead Snap Fit		Nylon Flame Retardant	M4 Thread
Essentra Access Solutions CBS-TF-16-01	1.402 "	35.6 mm	0.15625 in	3.96 mm	0.156 in	0.0625 "	0.062 "	1.57 mm	Screw Mount	25.4 mm	1 in		Snap Fit	6-32 Thread	Nylon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Board Support Arrowhead, Snap Fit / Nylon, Flame Retardant 1.000" (25.40mm) 1"
