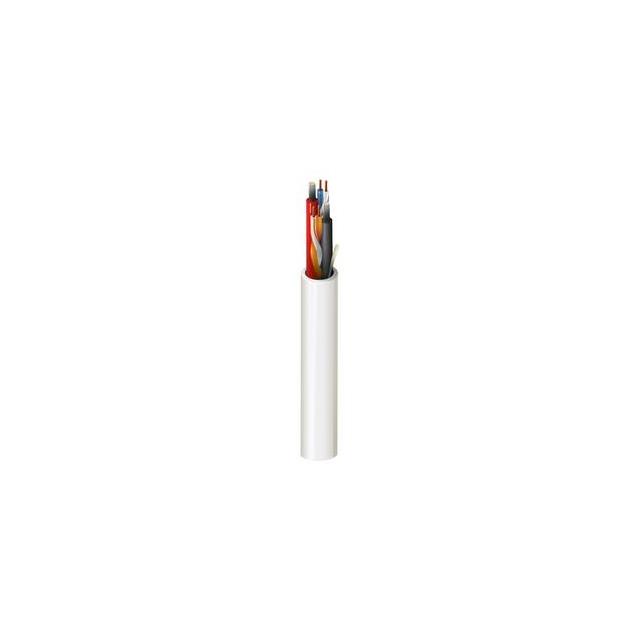

Specification	6284UE 009500

Cable Type	Multi-Pair, Cat5e
Conductor Arrangement	2 Twisted Pairs, 2
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned, Bare
Conductor Strand	Solid, 19/29
Jacket (Insulation) Diameter	0.187 in
Jacket (Insulation) Material	Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum
Jacket (Insulation) Thickness	0.0145 in
Jacket Color	White
Length	500 ft
Number of Conductors	6
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	-10 °C
Ratings	Style, UL, CMP
Usage	PTZ Camera
Voltage	300 V
Wire Gauge	16 AWG, 23 AWG

6284UE Series

Part	Jacket Color	Conductor Insulation	Length	Conductor Arrangement	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Conductor Strand	Usage	Jacket (Insulation) Diameter	Ratings	Conductor Material	Cable Type	Wire Gauge	Voltage	Operating Temperature (Min)	Operating Temperature (Max)
Belden Inc. 6284UE 0101000	Black	Fluorinated Ethylene-Propylene (FEP)	1000 ft	2 2 Twisted Pairs	6	0.0145 in	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	19/29 Solid	PTZ Camera	0.187 in	CMP Style UL	Bare Copper Tinned	Cat5e Multi-Pair	16 AWG 23 AWG	300 V	-10 °C	75 °C
Belden Inc. 6284UE 009500	White	Fluorinated Ethylene-Propylene (FEP)	500 ft	2 2 Twisted Pairs	6	0.0145 in	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	19/29 Solid	PTZ Camera	0.187 in	CMP Style UL	Bare Copper Tinned	Cat5e Multi-Pair	16 AWG 23 AWG	300 V	-10 °C	75 °C
