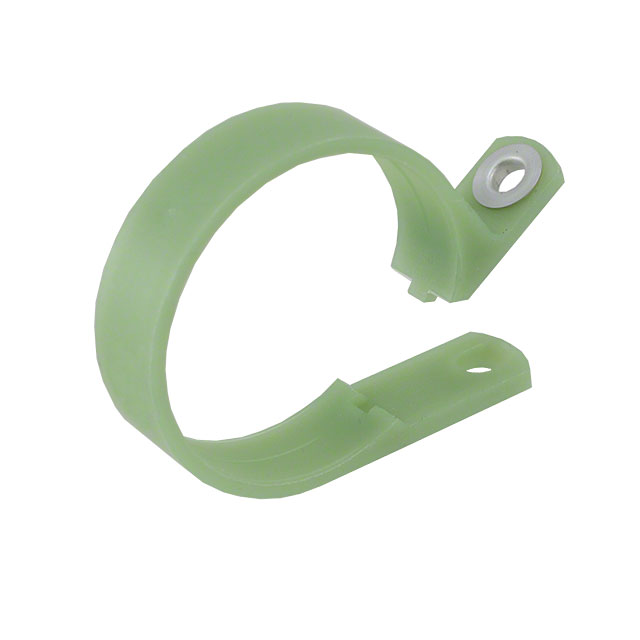

NM-26-R26
ActiveEssentra Access Solutions
CBL CLAMP P-TYPE GREEN FASTENER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NM-26-R26 |
|---|---|
| Bundle Center to Mounting Center | 1.25 in |
| Bundle Center to Mounting Center | 31.75 mm |
| Color | Green |
| Features | Eyelet, Heat Stabilized |
| Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-2 |
| Material Thickness | 3.05 mm |
| Material Thickness | 0.12 in |
| Mounting Type | Fastener |
| Opening Size | 41.28 mm |
| Opening Size [z] | 1.625 in |
| Panel Hole Size [diameter] | 5.23 mm |
| Panel Hole Size [diameter] | 0.206 in |
| Screw Size | M5 |
| Screw Size | #10 |
| Type | Clamp, P-Type |
| Type Attributes | Ribbed |
| Width [x] | 14.05 mm |
| Width [x] | 0.553 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.21 | |
| 10 | $ 6.51 | |||
| 25 | $ 6.15 | |||
| 50 | $ 6.00 | |||
| 100 | $ 5.70 | |||
| 300 | $ 5.10 | |||
| 500 | $ 4.80 | |||
| 1000 | $ 4.20 | |||
| 2500 | $ 3.99 | |||
Description
General part information
NM-26 Series
Cable Clamp, P-Type Green Fastener 1.625" (41.28mm)
