926307-3

Active

TE Connectivity AMP Connectors

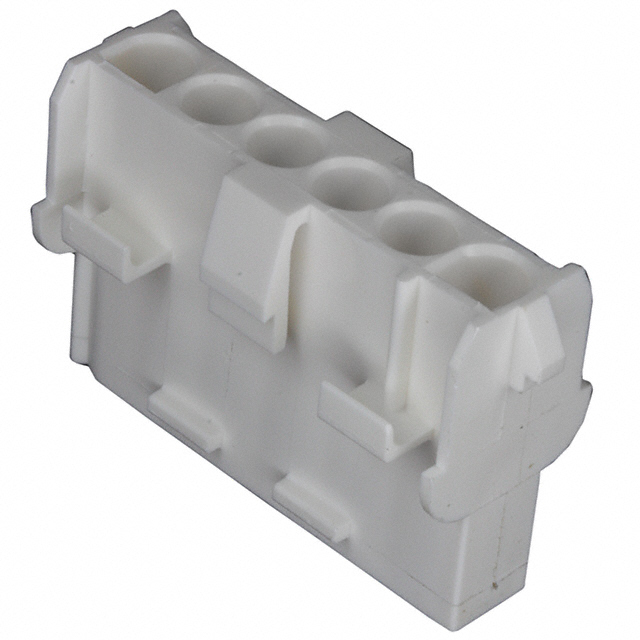

CONN RCPT HSG 6POS

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 6POS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	926307-3	926307 Series

Color	Red	Natural, Red
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Male or Female	Male or Female
Fastening Type	Locking Ramp	Locking Ramp
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA), Nylon, Polyamide (PA66), Nylon 6/6
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Note	Contacts Not Included	Contacts Not Included
Number of Positions	6	6
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C

CONN RCPT HSG 6POS

Part	Contact Termination	Mounting Type	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Number of Rows	Color	Connector Type	Contact Type	Insulation Material	Note
TE Connectivity AMP Connectors 926307-1	Crimp	Panel Mount, Snap-In	Locking Ramp	105 ░C	-55 °C	6	1	Natural	Receptacle	Male or Female	Nylon, Polyamide (PA)	Contacts Not Included
TE Connectivity AMP Connectors 926307-3	Crimp	Panel Mount, Snap-In	Locking Ramp	105 ░C	-55 °C	6	1	Red	Receptacle	Male or Female	Polyamide (PA66), Nylon 6/6	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Rectangular Connectors - Housings Receptacle Red
