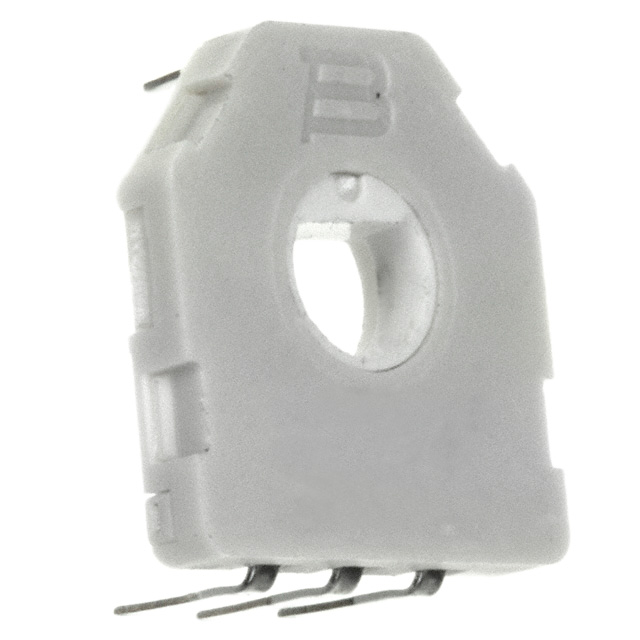

3382H-1-503

Active

Bourns Inc.

POTENTIOMETER - 12MM MULTI-TURN SENSOR /TUBE PACKAGING

Search across all available documentation for this part.

Active

Bourns Inc.

POTENTIOMETER - 12MM MULTI-TURN SENSOR /TUBE PACKAGING

Technical Specifications

Parameters and characteristics for this part

Specification	3382H-1-503

Actuator Type	Hole for Shaft
For Measuring	Rotary Position
Linearity	2 %
Mounting Type	Through Hole
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Output	Resistive
Output Signal	Clockwise Increase
Package / Case	Module, PC Pins
Resistance	50 kOhms
Resistance Tolerance	30 %
Rotation Angle - Electrical, Mechanical [Max]	330 °
Rotation Angle - Electrical, Mechanical [Min]	0 °
Technology	Resistive
Termination Style	PC Pin

Part	Resistance	Mounting Type	Rotation Angle - Electrical, Mechanical [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Linearity	Output	Package / Case	Termination Style	Actuator Type	Resistance Tolerance	Output Signal	For Measuring	Technology
Bourns Inc. 3382H-1-252	2.5 kOhms	Through Hole	330 °	-40 °C	120 °C	2 %	Resistive	Module PC Pins	PC Pin	Hole for Shaft	30 %	Clockwise Increase	Rotary Position	Resistive
Bourns Inc. 3382H-1-104	100 kOhms	Through Hole	330 °	-40 °C	120 °C	2 %	Resistive	Module PC Pins	PC Pin	Hole for Shaft	30 %	Clockwise Increase	Rotary Position	Resistive
Bourns Inc. 3382H-1-503	50 kOhms	Through Hole	330 °	-40 °C	120 °C	2 %	Resistive	Module PC Pins	PC Pin	Hole for Shaft	30 %	Clockwise Increase	Rotary Position	Resistive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Resistive Sensor Rotary Position Hole for Shaft PC Pin
