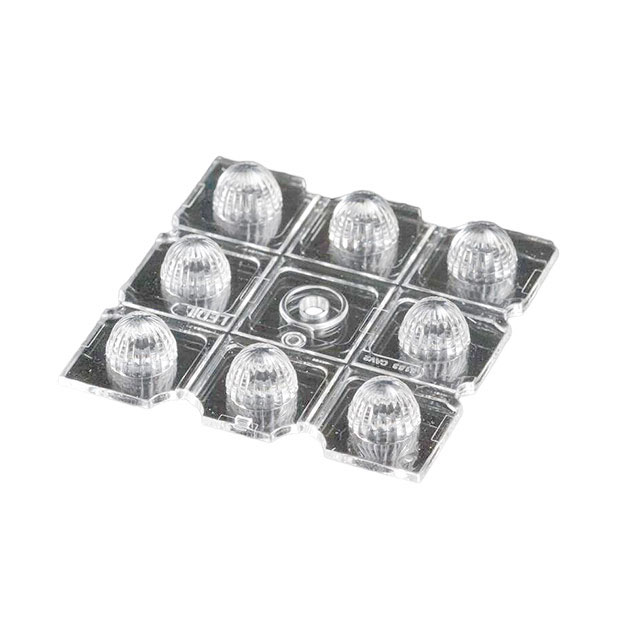

C15183_STRADELLA-8-HB-S
ActiveLEDiL
LENS ARRAY RECTANG 8 POS 49,5+49,5MM (D)/ FOAM TRAY ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C15183_STRADELLA-8-HB-S
ActiveLEDiL
LENS ARRAY RECTANG 8 POS 49,5+49,5MM (D)/ FOAM TRAY ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C15183_STRADELLA-8-HB-S |
|---|---|
| Color | Clear |
| For Use With/Related Manufacturer | Cree, Nichia, Seoul, Lumileds |
| Lens Size [x] | 49.5 mm |
| Lens Size [y] | 49.5 mm |
| Lens Style | Square with Domed Top |
| Lens Transparency | Diffused |
| Material | Acrylic |
| Mounting Type | Screw |
| Number of LEDs | 8 |
| Optical Pattern | Spot |
| Type | Lens |
| Viewing Angle [Max] | 33 ° |
| Viewing Angle [Min] | 23 ° |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
C15183 Series
Lens Clear 23° ~ 33° Spot Screw
