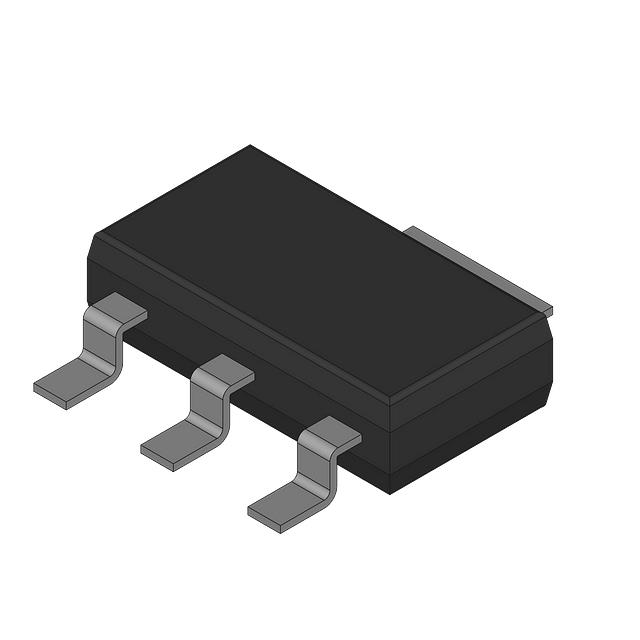

DS1233Z-10/TR
ActiveAnalog Devices Inc./Maxim Integrated
IC SUPERVISOR DS1233 ECONORESET
Deep-Dive with AI
Search across all available documentation for this part.
DS1233Z-10/TR
ActiveAnalog Devices Inc./Maxim Integrated
IC SUPERVISOR DS1233 ECONORESET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DS1233Z-10/TR | DS1233 Series |
|---|---|---|
| Mounting Type | Surface Mount | Through Hole, Surface Mount |
| Number of Voltages Monitored | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output | Open Drain or Open Collector | Open Drain or Open Collector |
| Package / Case | TO-261AA, TO-261-4 | TO-226-3, TO-92-3, TO-261AA, TO-261-4 |
| Reset | Active Low | Active Low |
| Reset Timeout | 250 ms | 250 ms |
| Supplier Device Package | SOT-223 | TO-92-3, SOT-223, SOT-223-3 |
| Type | Power Supply Monitor | Simple Reset/Power-On Reset, Power Supply Monitor |
| Voltage - Threshold | 4.375 V | 4.125 - 4.625 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 217 | $ 1.38 | |
DS1233 Series
IC SUPERVISOR 1 CHANNEL TO92-3
| Part | Supplier Device Package | Reset Timeout | Mounting Type | Type | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Voltage - Threshold | Number of Voltages Monitored | Reset | Output |
|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated DS1233-5+T&R | TO-92-3 | 250 ms | Through Hole | Simple Reset/Power-On Reset | 85 °C | -40 °C | TO-226-3, TO-92-3 | 4.625 V | 1 | Active Low | Open Drain or Open Collector |
Analog Devices Inc./Maxim Integrated DS1233Z-10/TR | SOT-223 | 250 ms | Surface Mount | Power Supply Monitor | 85 °C | -40 °C | TO-261-4, TO-261AA | 4.375 V | 1 | Active Low | Open Drain or Open Collector |
Analog Devices Inc./Maxim Integrated DS1233-15+T&R | TO-92-3 | 250 ms | Through Hole | Simple Reset/Power-On Reset | 85 °C | -40 °C | TO-226-3, TO-92-3 | 4.125 V | 1 | Active Low | Open Drain or Open Collector |
Analog Devices Inc./Maxim Integrated DS1233Z-5 | SOT-223-3 | 250 ms | Surface Mount | Simple Reset/Power-On Reset | 85 °C | -40 °C | TO-261-4, TO-261AA | 4.625 V | 1 | Active Low | Open Drain or Open Collector |
Analog Devices Inc./Maxim Integrated DS1233-15 | TO-92-3 | 250 ms | Through Hole | Simple Reset/Power-On Reset | 85 °C | -40 °C | TO-226-3, TO-92-3 | 4.125 V | 1 | Active Low | Open Drain or Open Collector |
Analog Devices Inc./Maxim Integrated DS1233Z-15+T&R | SOT-223-3 | 250 ms | Surface Mount | Simple Reset/Power-On Reset | 85 °C | -40 °C | TO-261-4, TO-261AA | 4.125 V | 1 | Active Low | Open Drain or Open Collector |
Analog Devices Inc./Maxim Integrated DS1233-10/T&R | TO-92-3 | 250 ms | Through Hole | Simple Reset/Power-On Reset | 85 °C | -40 °C | TO-226-3, TO-92-3 | 4.375 V | 1 | Active Low | Open Drain or Open Collector |
Analog Devices Inc./Maxim Integrated DS1233-10 | TO-92-3 | 250 ms | Through Hole | Simple Reset/Power-On Reset | 85 °C | -40 °C | TO-226-3, TO-92-3 | 4.375 V | 1 | Active Low | Open Drain or Open Collector |
Analog Devices Inc./Maxim Integrated DS1233-10+ | TO-92-3 | 250 ms | Through Hole | Simple Reset/Power-On Reset | 85 °C | -40 °C | TO-226-3, TO-92-3 | 4.375 V | 1 | Active Low | Open Drain or Open Collector |
Analog Devices Inc./Maxim Integrated DS1233Z-15+ | SOT-223-3 | 250 ms | Surface Mount | Simple Reset/Power-On Reset | 85 °C | -40 °C | TO-261-4, TO-261AA | 4.125 V | 1 | Active Low | Open Drain or Open Collector |
Analog Devices Inc./Maxim Integrated DS1233-5 | TO-92-3 | 250 ms | Through Hole | Simple Reset/Power-On Reset | 85 °C | -40 °C | TO-226-3, TO-92-3 | 4.625 V | 1 | Active Low | Open Drain or Open Collector |
Analog Devices Inc./Maxim Integrated DS1233Z-10+ | SOT-223-3 | 250 ms | Surface Mount | Simple Reset/Power-On Reset | 85 °C | -40 °C | TO-261-4, TO-261AA | 4.375 V | 1 | Active Low | Open Drain or Open Collector |
Analog Devices Inc./Maxim Integrated DS1233Z-5+ | SOT-223-3 | 250 ms | Surface Mount | Simple Reset/Power-On Reset | 85 °C | -40 °C | TO-261-4, TO-261AA | 4.625 V | 1 | Active Low | Open Drain or Open Collector |
Analog Devices Inc./Maxim Integrated DS1233-10+T&R | TO-92-3 | 250 ms | Through Hole | Simple Reset/Power-On Reset | 85 °C | -40 °C | TO-226-3, TO-92-3 | 4.375 V | 1 | Active Low | Open Drain or Open Collector |
Analog Devices Inc./Maxim Integrated DS1233Z-10+T&R | SOT-223-3 | 250 ms | Surface Mount | Simple Reset/Power-On Reset | 85 °C | -40 °C | TO-261-4, TO-261AA | 4.375 V | 1 | Active Low | Open Drain or Open Collector |
Analog Devices Inc./Maxim Integrated DS1233-15+ | TO-92-3 | 250 ms | Through Hole | Simple Reset/Power-On Reset | 85 °C | -40 °C | TO-226-3, TO-92-3 | 4.125 V | 1 | Active Low | Open Drain or Open Collector |
Analog Devices Inc./Maxim Integrated DS1233Z-15 | SOT-223-3 | 250 ms | Surface Mount | Simple Reset/Power-On Reset | 85 °C | -40 °C | TO-261-4, TO-261AA | 4.125 V | 1 | Active Low | Open Drain or Open Collector |
Analog Devices Inc./Maxim Integrated DS1233-15/T&R | TO-92-3 | 250 ms | Through Hole | Simple Reset/Power-On Reset | 85 °C | -40 °C | TO-226-3, TO-92-3 | 4.125 V | 1 | Active Low | Open Drain or Open Collector |
Analog Devices Inc./Maxim Integrated DS1233Z-15/T&R | SOT-223-3 | 250 ms | Surface Mount | Simple Reset/Power-On Reset | 85 °C | -40 °C | TO-261-4, TO-261AA | 4.125 V | 1 | Active Low | Open Drain or Open Collector |
Analog Devices Inc./Maxim Integrated DS1233Z-5/T&R | SOT-223-3 | 250 ms | Surface Mount | Simple Reset/Power-On Reset | 85 °C | -40 °C | TO-261-4, TO-261AA | 4.625 V | 1 | Active Low | Open Drain or Open Collector |
Analog Devices Inc./Maxim Integrated DS1233-5/T&R | TO-92-3 | 250 ms | Through Hole | Simple Reset/Power-On Reset | 85 °C | -40 °C | TO-226-3, TO-92-3 | 4.625 V | 1 | Active Low | Open Drain or Open Collector |
Analog Devices Inc./Maxim Integrated DS1233-5+ | TO-92-3 | 250 ms | Through Hole | Simple Reset/Power-On Reset | 85 °C | -40 °C | TO-226-3, TO-92-3 | 4.625 V | 1 | Active Low | Open Drain or Open Collector |
Analog Devices Inc./Maxim Integrated DS1233Z-5+T&R | SOT-223-3 | 250 ms | Surface Mount | Simple Reset/Power-On Reset | 85 °C | -40 °C | TO-261-4, TO-261AA | 4.625 V | 1 | Active Low | Open Drain or Open Collector |
Description
General part information
DS1233 Series
Supervisor Open Drain or Open Collector 1 Channel SOT-223
Documents
Technical documentation and resources
No documents available
