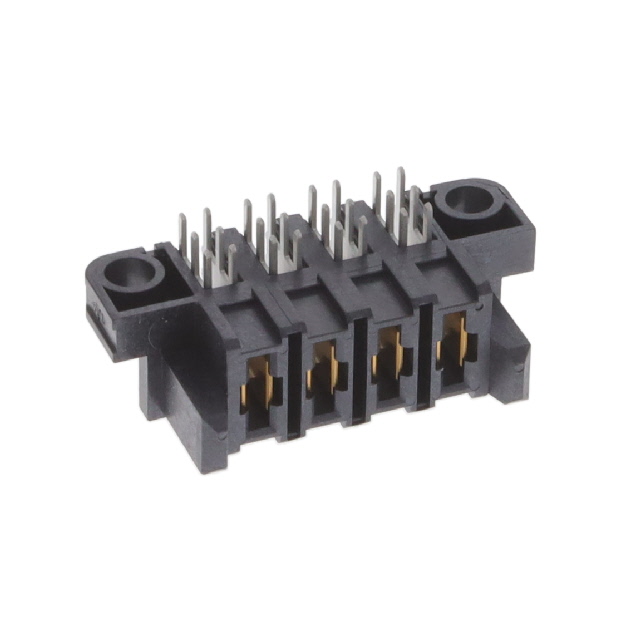

MPS-04-01-01-L-RA-SD

Active

Samtec Inc.

CONN RCPT 4POS 5.00MM R/A SLDR

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT 4POS 5.00MM R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	MPS-04-01-01-L-RA-SD

Color	Black
Connector Type	Receptacle, Female Blade Sockets
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Current Rating (Amps)	30 A
Features	Flange
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Termination	Solder
Voltage Rating	812 V

Part	Features	Color	Current Rating (Amps)	Contact Finish	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Material - Insulation	Mounting Type	Connector Type	Termination	Pitch [x]	Pitch [x]	Contact Material	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Number of Positions
Samtec Inc. MPS-04-01-01-L-RA-SD	Flange	Black	30 A	Gold	812 V	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Through Hole Right Angle	Receptacle Female Blade Sockets	Solder	5 mm	0.197 in	Copper Alloy	1	10 Áin	0.25 Ám	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Receptacle, Female Blade Sockets Connector Solder 0.197" (5.00mm) Through Hole, Right Angle
