000-35650-51

Active

AMPHENOL RF

CONN TERMINATOR PLUG BNC 51OHM

Search across all available documentation for this part.

Active

AMPHENOL RF

CONN TERMINATOR PLUG BNC 51OHM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

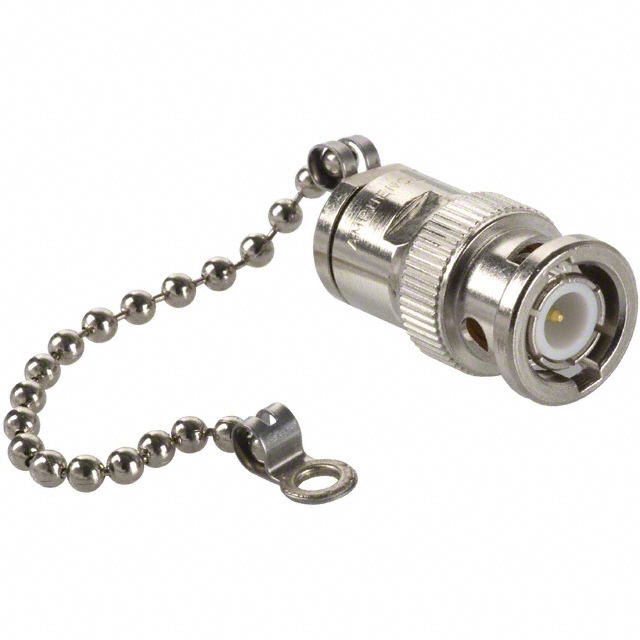

Terminator Coax Connector Plug, Male Pin BNC 51 Ohms

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	000-35650-51	000-35 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	-	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	-	Beryllium Copper, Phosphor Bronze
Center Contact Plating	-	Silver, Gold
Connector Style	BNC	BNC, N Type
Connector Type	Male Pin, Plug	Male Pin, Plug, Female Socket, Jack
Contact Finish	Gold	Gold
Contact Material	Brass	Brass
Contact Termination	-	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Features	Chain	Chain
Frequency - Max [Max]	4 GHz	2 - 11 GHz
Housing Color	-	Silver
Impedance	51 Ohms	50 - 75 Ohms
Includes	-	1 Braid Clamp, 1 Washer, 1 Gasket, 1 Contact, 1 Connector, 1 Clamp
Mating Cycles	-	500
Mounting Type	Free Hanging, Cap	Free Hanging, Cap, Free Hanging (In-Line)
Number of Ports	-	1
Operating Temperature	-	-65 ░C
Operating Temperature	-	165 °C
Shield Termination	-	Clamp

CONN TERMINATOR PLUG BNC 75OHM

Part	Connector Type	Body Material	Body Finish	Connector Style	Features	Contact Finish	Frequency - Max [Max]	Mounting Type	Contact Material	Impedance	Dielectric Material	Number of Ports	Shield Termination	Mating Cycles	Contact Termination	Center Contact Material	Housing Color	Center Contact Plating	Cable Group	Includes	Operating Temperature [Min]	Operating Temperature [Max]
AMPHENOL RF 000-35650-75	Male Pin, Plug	Brass	Nickel	BNC	Chain	Gold	2 GHz	Cap, Free Hanging	Brass	75 Ohms	Polytetrafluoroethylene (PTFE)
AMPHENOL RF 000-35650-51	Male Pin, Plug	Brass	Nickel	BNC	Chain	Gold	4 GHz	Cap, Free Hanging	Brass	51 Ohms	Polytetrafluoroethylene (PTFE)
AMPHENOL RF 000-35275	Female Socket, Jack	Brass	Nickel	N Type						50 Ohms	Polytetrafluoroethylene (PTFE)	1	Clamp	500	Solder	Beryllium Copper	Silver	Silver	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58
AMPHENOL RF 000-35025-RFX	Female Socket, Jack	Brass	Nickel	N Type			11 GHz	Free Hanging (In-Line)		50 Ohms	Polytetrafluoroethylene (PTFE)	1	Clamp	500	Solder	Phosphor Bronze	Silver	Gold	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	1 Braid Clamp, 1 Clamp, 1 Connector, 1 Contact, 1 Gasket, 1 Washer	-65 ░C	165 °C
AMPHENOL RF 000-35025	Female Socket, Jack	Brass	Nickel	N Type			11 GHz	Free Hanging (In-Line)		50 Ohms	Polytetrafluoroethylene (PTFE)	1	Clamp	500	Solder	Beryllium Copper	Silver	Silver	141, 303, 58A, 58B, 58C, 9907, Belden B7806A, LMR-195, RG-58	1 Braid Clamp, 1 Clamp, 1 Connector, 1 Contact, 1 Gasket
