1318792-1

Active

TE Connectivity AMP Connectors

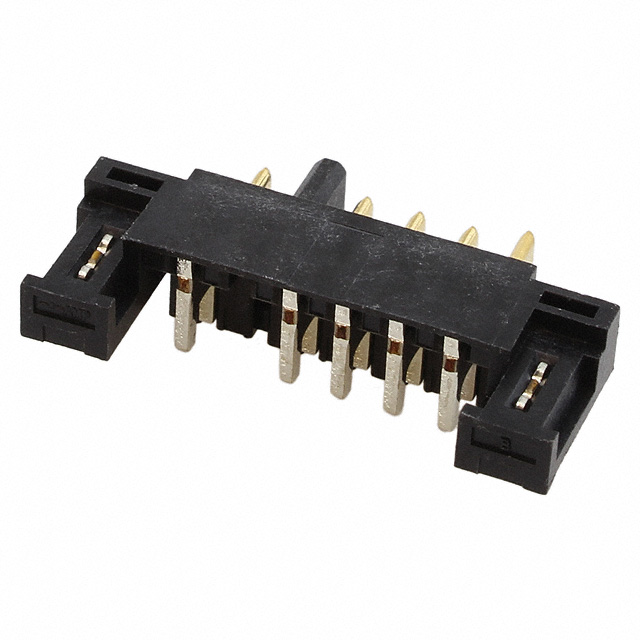

CONN PLUG 5POS 2.50MM EDGE R/A

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG 5POS 2.50MM EDGE R/A

Technical Specifications

Parameters and characteristics for this part

Specification	1318792-1

Color	Black
Connector Type	Plug, Male Blades
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Current Rating (Amps)	6 A
Fastening Type	Push-Pull
Material - Insulation	Thermoplastic
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Rows	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm
Termination	Solder
Voltage Rating	30 VDC

CONN PLUG 5POS 2.50MM EDGE R/A

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish Thickness	Current Rating (Amps)	Mounting Type	Material - Insulation	Color	Number of Rows	Termination	Pitch [x]	Pitch [x]	Connector Type	Contact Finish	Fastening Type	Voltage Rating
TE Connectivity AMP Connectors 1318792-1	-20 C	80 C	Copper Alloy	Flash	6 A	Board Edge, Right Angle, Through Hole	Thermoplastic	Black	1	Solder	0.098 in	2.5 mm	Plug, Male Blades	Gold	Push-Pull	30 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5 Position Plug, Male Blades Connector Solder 0.098" (2.50mm) Board Edge, Through Hole, Right Angle
