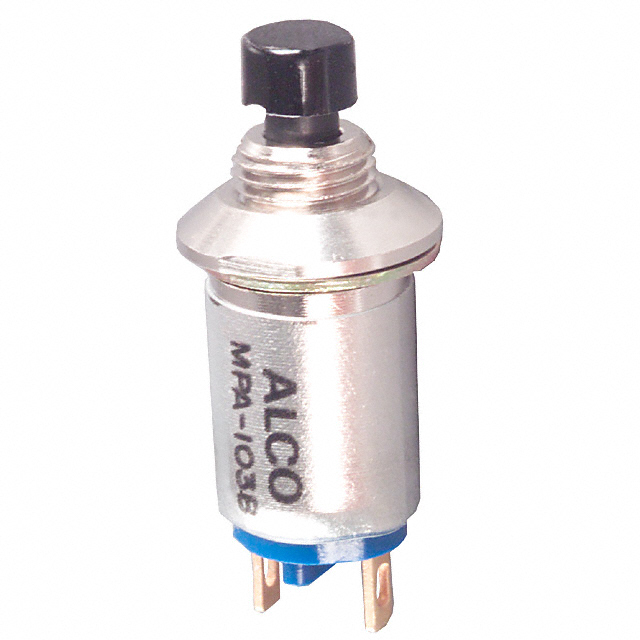

MPA103B04

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH PUSH SPST-NC 3A 125V

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH PUSH SPST-NC 3A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	MPA103B04

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NC
Color - Actuator/Cap	Black
Current Rating (Amps)	3 A
Electrical Life	10000 Cycles
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	0.25 in
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	125 V

Part	Panel Cutout Dimensions [diameter]	Termination Style	Current Rating (Amps)	Voltage Rating - AC	Circuit	Actuator Type	Electrical Life	Type	Actuator Marking	Color - Actuator/Cap	Switch Function	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity Raychem Cable Protection MPA103B04	0.25 in	Solder Lug	3 A	125 V	SPST-NC	Button Round	10000 Cycles	Standard	No Marking	Black	On-Mom	Panel Mount Rear	-20 C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pushbutton Switch SPST-NC Standard Panel Mount, Rear
