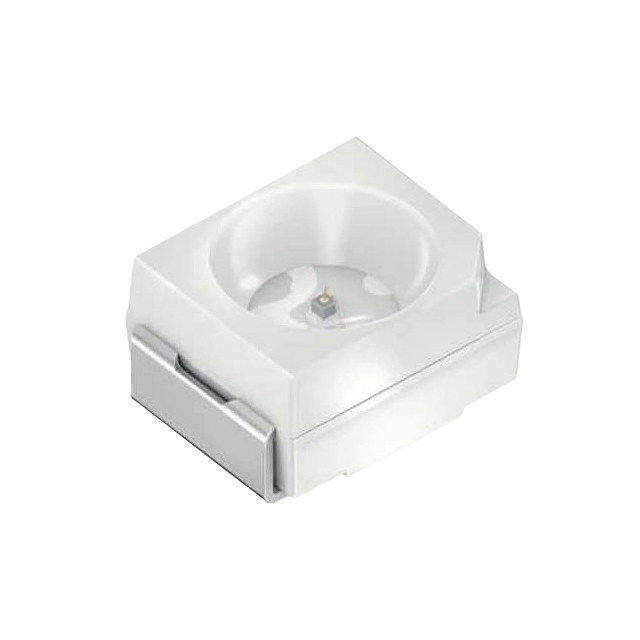

SFH 320-Z

Active

ams-OSRAM USA INC.

SENSOR PHOTO 980NM TOP VIEW 2LCC

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

SENSOR PHOTO 980NM TOP VIEW 2LCC

Technical Specifications

Parameters and characteristics for this part

Specification	SFH 320-Z

Current - Collector (Ic) (Max) [Max]	15 mA
Current - Dark (Id) (Max) [Max]	50 nA
Mounting Type	Surface Mount
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	2-LCC
Power - Max [Max]	165 mW
Viewing Angle	120 °
Voltage - Collector Emitter Breakdown (Max) [Max]	35 V
Wavelength	980 nm

Part	Orientation	Viewing Angle	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Dark (Id) (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]	Wavelength	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case
ams-OSRAM USA INC. SFH 320-4-Z	Top View	120 °	Surface Mount	100 °C	-40 °C	50 nA	15 mA	165 mW	980 nm	35 V	2-LCC
ams-OSRAM USA INC. SFH 320 FA-3/4-Z	Top View	120 °	Surface Mount	100 °C	-40 °C	50 nA	15 mA	165 mW	980 nm	35 V	2-LCC
ams-OSRAM USA INC. SFH 320-3/4-Z	Top View	120 °	Surface Mount	100 °C	-40 °C	50 nA	15 mA	165 mW	980 nm	35 V	2-PLCC
ams-OSRAM USA INC. SFH 320 FA-4-Z	Top View	120 °	Surface Mount	100 °C	-40 °C	50 nA	15 mA	165 mW	980 nm	35 V	2-LCC
ams-OSRAM USA INC. SFH 320-Z	Top View	120 °	Surface Mount	100 °C	-40 °C	50 nA	15 mA	165 mW	980 nm	35 V	2-LCC
ams-OSRAM USA INC. SFH 320 FA-3-Z	Top View	120 °	Surface Mount	100 °C	-40 °C	50 nA	15 mA	165 mW	980 nm	35 V	2-LCC
ams-OSRAM USA INC. SFH 320 FA-Z	Top View	120 °	Surface Mount	100 °C	-40 °C	50 nA	15 mA	165 mW	980 nm	35 V	2-LCC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Phototransistors 980nm Top View 2-LCC (J-Lead)
