TB67S289FTG,EL

Active

Toshiba Semiconductor and Storage

IC MOTOR DRIVER BIPOLAR 48VQFN

Search across all available documentation for this part.

Active

Toshiba Semiconductor and Storage

IC MOTOR DRIVER BIPOLAR 48VQFN

Technical Specifications

Parameters and characteristics for this part

Specification	TB67S289FTG,EL

Applications	General Purpose
Current - Output	3 A
Function	Driver - Fully Integrated, Control and Power Stage
Interface	Parallel
Motor Type - Stepper	Bipolar
Mounting Type	Surface Mount
Operating Temperature [Max]	85 C
Operating Temperature [Min]	-20 °C
Output Configuration	Half Bridge (8)
Package / Case	48-VFQFN Exposed Pad
Step Resolution	0.125, 0.03125, 0.25, 1, 0.5, 0.0625

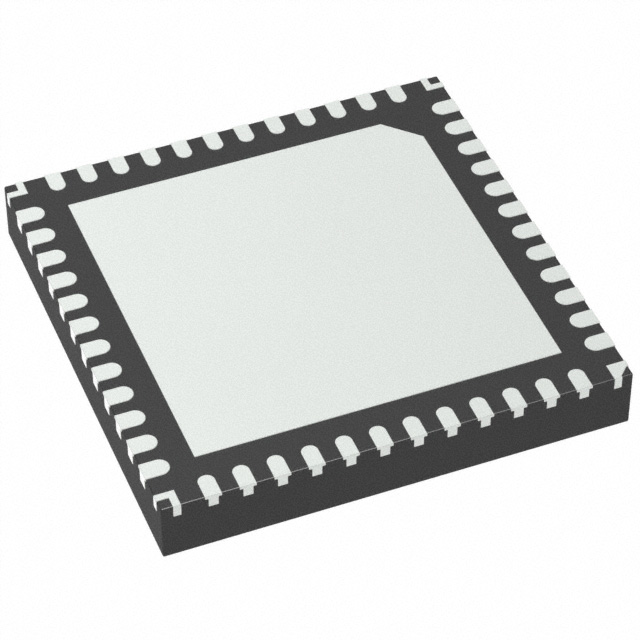

Supplier Device Package	48-VQFN (7x7)
Technology	Power MOSFET
Voltage - Load [Max]	47 V
Voltage - Load [Min]	10 V
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	4.75 V

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Motor Type - Stepper	Output Configuration	Step Resolution	Applications	Technology	Mounting Type	Voltage - Load [Min]	Voltage - Load [Max]	Current - Output	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Function	Interface	Supplier Device Package
Toshiba Semiconductor and Storage TB67S289FTG,EL	4.75 V	5.25 V	Bipolar	Half Bridge (8)	0.03125 0.0625 0.125 0.25 0.5 1	General Purpose	Power MOSFET	Surface Mount	10 V	47 V	3 A	48-VFQFN Exposed Pad	-20 °C	85 C	Driver - Fully Integrated Control and Power Stage	Parallel	48-VQFN (7x7)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar Motor Driver Power MOSFET Parallel 48-VQFN (7x7)
