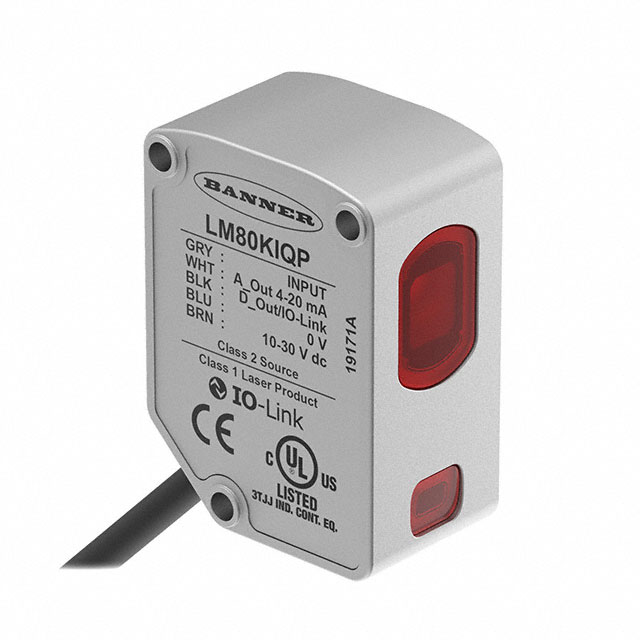

LM80KIQP

Active

BANNER ENGINEERING

LASER SENSOR, 80MM, CURRENT/PUSHPULL

Search across all available documentation for this part.

Active

BANNER ENGINEERING

LASER SENSOR, 80MM, CURRENT/PUSHPULL

Technical Specifications

Parameters and characteristics for this part

Specification	LM80KIQP

Current - Supply	62 mA
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Output Type	Analog
Sensing Distance [Max]	3.15 in
Sensing Distance [Max]	80 mm
Sensing Distance [Min]	1.57 in
Sensing Distance [Min]	40 mm
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]	Current - Supply
BANNER ENGINEERING LM80KIQP	Analog	30 VDC	10 VDC	55 °C	-10 °C	1.57 in	3.15 in	80 mm	40 mm	62 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1344.01
Newark	Each	1	$ 1212.60

General part information

Optical Sensor 1.57" ~ 3.15" (4 ~ 8cm) Analog Output
