General part information

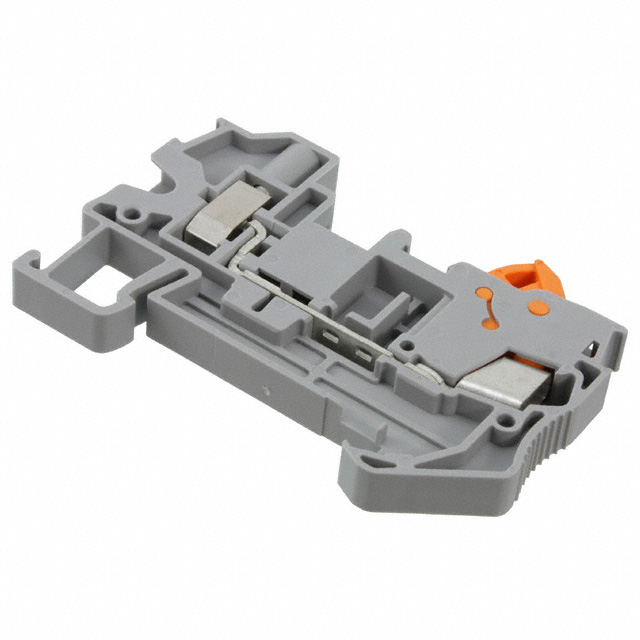

DIN Rail Terminal Blocks QTCU 2.5 SCREW-IDC HYBRID
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 3206539 |
|---|---|
| Color | Gray |
| Current - IEC | 24 A |
| Material - Insulation | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Terminal - Width [y] | 6.2 mm |
| Termination Style | Screw, IDC |
| Type | Feed Through |
| Voltage - IEC | 800 V |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG [Max] | 20 AWG |
| Wire Gauge or Range - AWG [Min] | 14 AWG |
| Wire Gauge or Range - mm² [Max] | 2.5 mm² |
| Wire Gauge or Range - mm² [Min] | 0.5 mm² |
DIN Rail Terminal Blocks QTCU 2.5 SCREW-IDC HYBRID
| Part | Current - IEC | Material - Insulation | Type | Wire Gauge or Range - mm² [Max] | Wire Gauge or Range - mm² [Min] | Termination Style | Terminal - Width [y] | Number of Positions | Voltage - UL | Voltage - IEC | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Number of Levels | Color | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 3206539 | 24 A | Nylon, Polyamide (PA) | Feed Through | 2.5 mm² | 0.5 mm² | IDC, Screw | 6.2 mm | 2 | 600 V | 800 V | 20 AWG | 14 AWG | 1 | Gray | UL94 V-0 |
