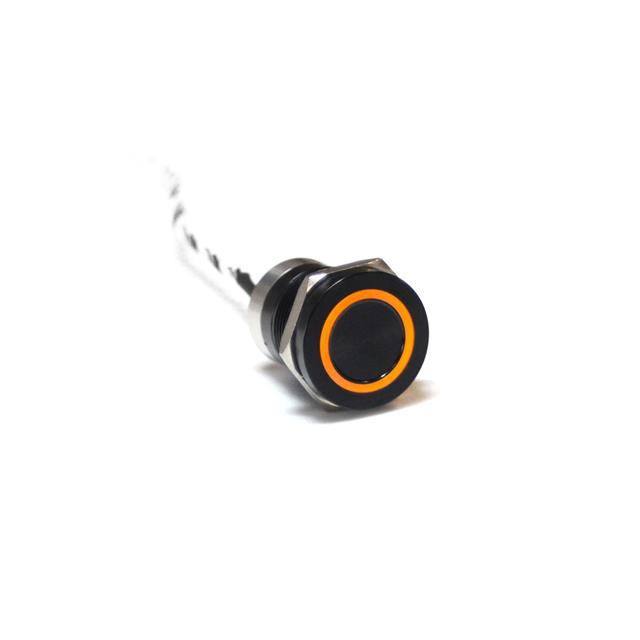

MC19LOBAM

Active

BULGIN LIMITED

SWITCH CAPACITIVE DPST OFF-ON

Search across all available documentation for this part.

Active

BULGIN LIMITED

SWITCH CAPACITIVE DPST OFF-ON

Technical Specifications

Parameters and characteristics for this part

Specification	MC19LOBAM

Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating (Amps)	500 mA
Electrical Life	50000000 Cycles
Illumination Type, Color	Amber, LED
Illumination Voltage (Nominal)	12 VDC
Ingress Protection	IP68, IP69K
Mechanical Life	50000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	19.2 mm
Switch Function	Off-On
Termination Style	Wire Leads
Type	Capacitive, Illuminated
Voltage Rating - DC	24 V

Part	Current Rating (Amps)	Mounting Type	Electrical Life	Illumination Type, Color	Ingress Protection	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Termination Style	Actuator Type	Voltage Rating - DC	Type	Mechanical Life	Color - Actuator/Cap	Circuit	Actuator Marking	Illumination Voltage (Nominal)
BULGIN LIMITED MC19LOBRG	500 mA	Panel Mount Front	50000000 Cycles	Green/Red LED	IP68 IP69K	Off-On	55 °C	-25 °C	19.2 mm	Wire Leads	Button Flush Round	12 V	Capacitive Illuminated	50000000 Cycles	Black	SPST-NO	No Marking
BULGIN LIMITED MC19LOBGN	500 mA	Panel Mount Front	50000000 Cycles	Green LED	IP68 IP69K	Off-On	55 °C	-25 °C	19.2 mm	Wire Leads	Button Flush Round	24 V	Capacitive Illuminated	50000000 Cycles	Black	SPST-NO		12 VDC
BULGIN LIMITED MC19LOBGR	500 mA	Panel Mount Front	50000000 Cycles	Green/Red LED	IP68 IP69K	Off-On	55 °C	-25 °C	19.2 mm	Wire Leads	Button Flush Round	12 V	Capacitive Illuminated	50000000 Cycles	Black	SPST-NO	No Marking
BULGIN LIMITED MC19LOBAM	500 mA	Panel Mount Front	50000000 Cycles	Amber LED	IP68 IP69K	Off-On	55 °C	-25 °C	19.2 mm	Wire Leads	Button Flush Round	24 V	Capacitive Illuminated	50000000 Cycles	Black	SPST-NO		12 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	60	$ 44.92

General part information

Pushbutton Switch SPST-NO Capacitive, Illuminated Panel Mount, Front
