Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SFTW203 3/8" BL SPL | SFTW203 Series |
|---|---|---|
| Color | Black | Black |
| Features | Flame Retardant, Chemical Resistant, Corrosive Resistant, Self Extinguishing | Flame Retardant, Chemical Resistant, Corrosive Resistant, Self Extinguishing |
| Inner Diameter - Recovered | - | 0.079 - 0.512 in |
| Inner Diameter - Recovered | - | 2.01 - 13 mm |
| Inner Diameter - Recovered [diameter] | 0.118 in | 0.02 - 0.315 in |
| Inner Diameter - Recovered [diameter] | 2.99 mm | 0.51 - 8 mm |
| Inner Diameter - Supplied [diameter] | 0.354 in | 0.059 - 0.945 in |
| Inner Diameter - Supplied [diameter] | 8.99 mm | 1.5 - 24 mm |
| Length | 1.52 m, 152.4 mm, 15.2 m, 50.8 mm, 76.2 mm, 7.6 m | 1.52 - 304.8 m |
| Length | 5 ', 50 ft, 0.167 ', 0.25 ft, 25 ft | 0.062 - 1000 ' |
| Length | 6 ", 2 ", 3 " | 0.75 - 6 " |
| Length | 0.5 ' | 0.5 ' |
| Length | Enter Number of Feet in Order Quantity | Enter Number of Feet in Order Quantity |
| Length | - | 4 " |
| Length | - | 0.333 - 200 ft |
| Length | - | 1.22 - 101.6 mm |
| Material | Polyolefin (PO) | Polyolefin (PO) |
| Operating Temperature [Max] | 135 °C | 135 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Recovered Wall Thickness | 0.76 mm | 0.46 - 1.14 mm |
| Recovered Wall Thickness | 0.03 " | 0.03 " |
| Recovered Wall Thickness | - | 0.018 - 0.045 in |
| Shelf Life | 120 Months | 120 Months |
| Shelf Life Start | Date of Manufacture | Date of Manufacture |
| Shrink Temperature | 100 °C | 100 °C |
| Shrinkage Ratio [Max] | 3 | 3 |
| Shrinkage Ratio [Min] | 1 | 1 |
| Spool Size | 61 m | 61 - 304.8 m |
| Spool Size | 200 ' | 200 - 1000 ' |
| Storage/Refrigeration Temperature [Max] | 80 °F, 27 °C | 27 - 80 °F |
| Storage/Refrigeration Temperature [Min] | 10 °C | 10 °C |
| Type | Tubing, Flexible | Tubing, Flexible |
SFTW203 Series
HEATSHRINK SFTW203 3/8" BLK FOOT
| Part | Shelf Life | Inner Diameter - Supplied [diameter] | Inner Diameter - Supplied [diameter] | Length | Length | Type | Length | Length | Shelf Life Start | Recovered Wall Thickness | Recovered Wall Thickness | Features | Storage/Refrigeration Temperature [Max] | Storage/Refrigeration Temperature [Min] | Material | Color | Length | Shrinkage Ratio [Min] | Shrinkage Ratio [Max] | Shrink Temperature | Spool Size | Spool Size | Operating Temperature [Max] | Operating Temperature [Min] | Inner Diameter - Recovered [diameter] | Inner Diameter - Recovered [diameter] | Recovered Wall Thickness | Length [x] | Length [x] | Length [x] | Inner Diameter - Recovered | Inner Diameter - Recovered |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
120 Months | 0.354 in | 8.99 mm | 1.52 m, 7.6 m, 15.2 m, 50.8 mm, 76.2 mm, 152.4 mm | 0.167 ', 0.25 ft, 5 ', 25 ft, 50 ft | Tubing, Flexible | 2 ", 3 ", 6 " | 0.5 ' | Date of Manufacture | 0.76 mm | 0.03 " | Chemical Resistant, Corrosive Resistant, Flame Retardant, Self Extinguishing | 27 °C, 80 °F | 10 °C | Polyolefin (PO) | Black | Enter Number of Feet in Order Quantity | 1 | 3 | 100 °C | 61 m | 200 ' | 135 °C | -55 °C | 0.118 in | 2.99 mm | |||||||
120 Months | 0.059 in | 1.5 mm | 1.52 m, 7.6 m, 15.2 m, 25.4 mm, 50.8 mm, 152.4 mm, 304.8 m | 0.083 ft, 0.167 ', 5 ', 25 ft, 50 ft, 1000 ft | Tubing, Flexible | 1 in, 2 ", 6 " | 0.5 ' | Date of Manufacture | 0.46 mm | Chemical Resistant, Corrosive Resistant, Flame Retardant, Self Extinguishing | 27 °C, 80 °F | 10 °C | Polyolefin (PO) | Black | Enter Number of Feet in Order Quantity | 1 | 3 | 100 °C | 304.8 m | 1000 ft | 135 °C | -55 °C | 0.02 in | 0.51 mm | 0.018 in | 4 " | 0.333 ft | 101.6 mm | ||||
120 Months | 0.118 in | 3 mm | 1.52 m, 7.6 m, 15.2 m, 25.4 mm | 0.083 ft, 5 ', 25 ft, 50 ft | Tubing, Flexible | 1 in | Date of Manufacture | 0.56 mm | Chemical Resistant, Corrosive Resistant, Flame Retardant, Self Extinguishing | 27 °C, 80 °F | 10 °C | Polyolefin (PO) | Black | Enter Number of Feet in Order Quantity | 1 | 3 | 100 °C | 152.4 m | 500 ' | 135 °C | -55 °C | 0.039 in | 0.99 mm | 0.022 " | 4 " | 0.333 ft | 101.6 mm | |||||
120 Months | 0.236 in | 5.99 mm | 1.52 m, 7.6 m, 38.1 mm, 76.2 mm, 152.4 mm | 0.125 ', 0.25 ft, 5 ', 25 ft | Tubing, Flexible | 1.5 ", 3 ", 6 " | 0.5 ' | Date of Manufacture | 0.66 mm | Chemical Resistant, Corrosive Resistant, Flame Retardant, Self Extinguishing | 27 °C, 80 °F | 10 °C | Polyolefin (PO) | Black | Enter Number of Feet in Order Quantity | 1 | 3 | 100 °C | 61 m | 200 ' | 135 °C | -55 °C | 0.026 " | 4 " | 0.333 ft, 200 ft | 61 m, 101.6 mm | 0.079 in | 2.01 mm | ||||
120 Months | Tubing, Flexible | Date of Manufacture | 1.14 mm | Chemical Resistant, Corrosive Resistant, Flame Retardant, Self Extinguishing | 27 °C, 80 °F | 10 °C | Polyolefin (PO) | Black | 1 | 3 | 100 °C | 135 °C | -55 °C | 0.045 in | 100 ft | 30.5 m | 0.512 in | 13 mm | ||||||||||||||
120 Months | 0.945 " | 24 mm | Tubing, Flexible | Date of Manufacture | 0.99 mm | Chemical Resistant, Corrosive Resistant, Flame Retardant, Self Extinguishing | 27 °C, 80 °F | 10 °C | Polyolefin (PO) | Black | 1 | 3 | 100 °C | 135 °C | -55 °C | 0.315 in | 8 mm | 0.039 in | 4 ft | 1.22 m | ||||||||||||
120 Months | 0.236 in | 5.99 mm | Tubing, Flexible | Date of Manufacture | 0.66 mm | Chemical Resistant, Corrosive Resistant, Flame Retardant, Self Extinguishing | 27 °C, 80 °F | 10 °C | Polyolefin (PO) | Black | 1 | 3 | 100 °C | 135 °C | -55 °C | 0.026 " | 4 ft | 1.22 m | 0.079 in | 2.01 mm | ||||||||||||
120 Months | 0.118 in | 3 mm | Tubing, Flexible | Date of Manufacture | 0.56 mm | Chemical Resistant, Corrosive Resistant, Flame Retardant, Self Extinguishing | 27 °C, 80 °F | 10 °C | Polyolefin (PO) | Black | 1 | 3 | 100 °C | 135 °C | -55 °C | 0.039 in | 0.99 mm | 0.022 " | 4 ft | 1.22 m | ||||||||||||
120 Months | 0.472 in | 11.99 mm | 15.2 m, 19.05 mm, 25.4 mm | 0.062 ', 0.083 ft, 50 ft | Tubing, Flexible | 0.75 ", 1 in | Date of Manufacture | 0.76 mm | 0.03 " | Chemical Resistant, Corrosive Resistant, Flame Retardant, Self Extinguishing | 27 °C, 80 °F | 10 °C | Polyolefin (PO) | Black | Enter Number of Feet in Order Quantity | 1 | 3 | 100 °C | 61 m | 200 ' | 135 °C | -55 °C | 0.157 in | 3.99 mm | 4 " | 0.333 ft, 200 ft | 61 m, 101.6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 42.41 | |
| 1 | $ 25.18 | |||
| 1 | $ 6.36 | |||
| 5 | $ 21.21 | |||
| 5 | $ 6.10 | |||
| 5 | $ 39.76 | |||
| 10 | $ 19.22 | |||
| 10 | $ 37.11 | |||
| 10 | $ 4.77 | |||
| 25 | $ 4.24 | |||
| 25 | $ 35.25 | |||
| 25 | $ 17.89 | |||
| 50 | $ 0.20 | |||
| 50 | $ 0.36 | |||
| 50 | $ 17.23 | |||
| 50 | $ 3.98 | |||
| 50 | $ 0.06 | |||
| 50 | $ 0.12 | |||
| 50 | $ 34.46 | |||
| 100 | $ 33.66 | |||
| 100 | $ 16.83 | |||
| 100 | $ 3.71 | |||
| 100 | $ 0.18 | |||
| 100 | $ 0.06 | |||
| 100 | $ 0.11 | |||
| 100 | $ 0.33 | |||
| 150 | $ 0.18 | |||
| 150 | $ 0.31 | |||
| 150 | $ 0.05 | |||
| 250 | $ 0.29 | |||
| 250 | $ 0.05 | |||
| 250 | $ 0.17 | |||
| 250 | $ 0.10 | |||
| 350 | $ 0.28 | |||
| 350 | $ 0.16 | |||
| 350 | $ 0.05 | |||
| 500 | $ 0.05 | |||
| 500 | $ 0.15 | |||
| 500 | $ 0.09 | |||
| 500 | $ 0.27 | |||
| 1250 | $ 0.04 | |||
| 1250 | $ 0.09 | |||
| 1250 | $ 0.14 | |||
| 1250 | $ 0.24 | |||
| 2500 | $ 0.04 | |||
| 2500 | $ 0.23 | |||
| 2500 | $ 0.13 | |||
| 5000 | $ 0.12 | |||
| 5000 | $ 0.03 | |||
| Digi-Spool®, Continuous Spool | 1 | $ 2.34 | ||
| 5 | $ 2.13 | |||
| 10 | $ 1.62 | |||
| 25 | $ 1.53 | |||
| 50 | $ 1.45 | |||
| 100 | $ 1.36 | |||
Description
General part information
SFTW203 Series

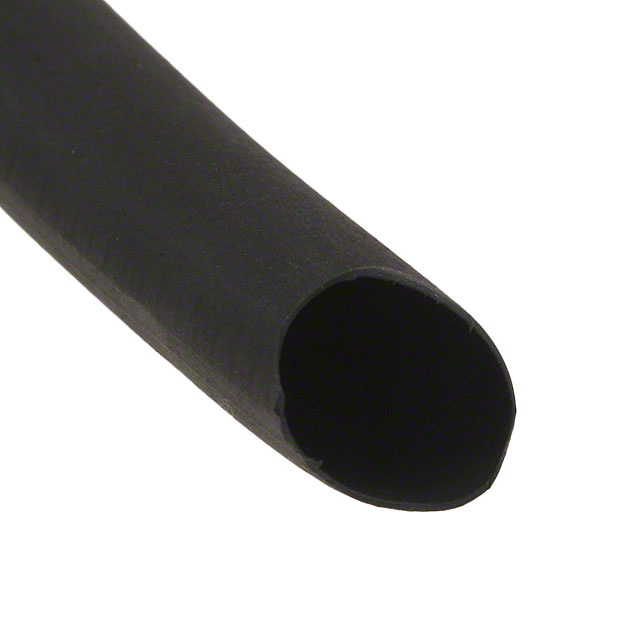

Heat Shrink Tubing, Flexible 0.354" (8.99mm) 3 to 1 Black Enter Number of Feet in Order Quantity
