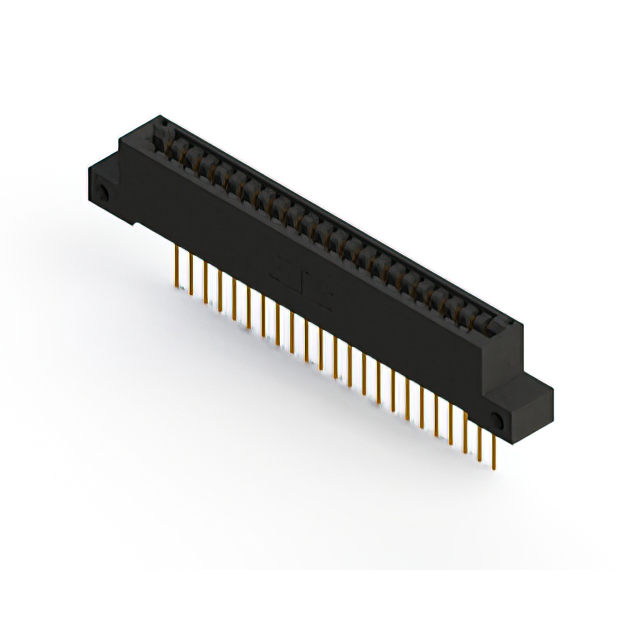

896-023-541-112

Active

EDAC Inc.

CONN EDGE SGL FMALE 23POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

896-023-541-112

Active

EDAC Inc.

CONN EDGE SGL FMALE 23POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	896-023-541-112

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Unthreaded, Flush Mount, Side Opening
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	23
Number of Positions/Bay/Row [custom]	23
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

896-023 Series

Part	Termination	Contact Finish	Number of Rows	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Read Out	Gender	Termination Rows	Color	Material - Insulation	Contact Type	Card Type	Pitch [x]	Pitch [x]	Number of Positions	Number of Positions/Bay/Row [custom]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Flange Feature	Flange Feature
EDAC Inc. 896-023-559-104	Solder	Gold	1	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	10 Áin	0.25 Ám	Through Hole Right Angle	125 °C	-40 °C	Copper Alloy	Single	Female	1	Black	Polyphenylene Sulfide (PPS)	Cantilever	Non Specified - Single Edge	0.125 in	3.18 mm	23	23	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 896-023-521-104	Solder	Gold	1	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	10 Áin	0.25 Ám	Through Hole	125 °C	-40 °C	Copper Alloy	Single	Female	1	Black	Polyphenylene Sulfide (PPS)	Cantilever	Non Specified - Single Edge	0.125 in	3.18 mm	23	23	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 896-023-559-604	Solder	Gold	1	3.96 mm	Top Mount Opening Unthreaded	0.156 in	10 Áin	0.25 Ám	Through Hole Right Angle	125 °C	-40 °C	Copper Alloy	Single	Female	1	Black	Polyphenylene Sulfide (PPS)	Cantilever	Non Specified - Single Edge	0.125 in	3.18 mm	23	23	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 896-023-500-112	Solder Eyelet(s)	Gold	1	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	10 Áin	0.25 Ám	Through Hole	125 °C	-40 °C	Copper Alloy	Single	Female	1	Black	Polyphenylene Sulfide (PPS)	Cantilever	Non Specified - Single Edge	0.125 in	3.18 mm	23	23	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 896-023-541-603	Wire Wrap	Gold	1	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	10 Áin	0.25 Ám	Through Hole	125 °C	-40 °C	Copper Alloy	Single	Female	1	Black	Polyphenylene Sulfide (PPS)	Cantilever	Non Specified - Single Edge	0.125 in	3.18 mm	23	23	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 896-023-541-107	Wire Wrap	Gold	1		Flush Mount M3 Threaded Insert Top Opening		10 Áin	0.25 Ám	Through Hole	125 °C	-40 °C	Copper Alloy	Single	Female	1	Black	Polyphenylene Sulfide (PPS)	Cantilever	Non Specified - Single Edge	0.125 in	3.18 mm	23	23	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 896-023-500-602	Solder Eyelet(s)	Gold	1				10 Áin	0.25 Ám	Through Hole	125 °C	-40 °C	Copper Alloy	Single	Female	1	Black	Polyphenylene Sulfide (PPS)	Cantilever	Non Specified - Single Edge	0.125 in	3.18 mm	23	23	1.37 mm	0.054 "	1.78 mm	0.07 in	3.25 mm	0.128 in
EDAC Inc. 896-023-541-112	Wire Wrap	Gold	1	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	10 Áin	0.25 Ám	Through Hole	125 °C	-40 °C	Copper Alloy	Single	Female	1	Black	Polyphenylene Sulfide (PPS)	Cantilever	Non Specified - Single Edge	0.125 in	3.18 mm	23	23	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 896-023-558-603	Solder	Gold	1	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	10 Áin	0.25 Ám	Through Hole Right Angle	125 °C	-40 °C	Copper Alloy	Single	Female	1	Black	Polyphenylene Sulfide (PPS)	Cantilever	Non Specified - Single Edge	0.125 in	3.18 mm	23	23	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 896-023-559-102	Solder	Gold	1	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	10 Áin	0.25 Ám	Through Hole Right Angle	125 °C	-40 °C	Copper Alloy	Single	Female	1	Black	Polyphenylene Sulfide (PPS)	Cantilever	Non Specified - Single Edge	0.125 in	3.18 mm	23	23	1.37 mm	0.054 "	1.78 mm	0.07 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 49.66
Newark	Each	1	$ 59.59
		100	$ 48.68
		250	$ 44.86
		500	$ 41.86
		1000	$ 35.50

Description

General part information

896-023 Series

23 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Black
