SAL1-140-01-S-S-A-K-TR

Active

Samtec Inc.

CARD EDGE CONN, SINGLE SIDE, 40POS, SMT ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Samtec Inc.

CARD EDGE CONN, SINGLE SIDE, 40POS, SMT ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	SAL1-140-01-S-S-A-K-TR

Card Thickness [Max]	2.36 mm
Card Thickness [Max]	0.093 in
Card Thickness [Min]	1.6 mm
Card Thickness [Min]	0.063 in
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Features	Pick and Place, Board Guide, Solder Retention
Gender	Female
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	40
Number of Positions/Bay/Row [custom]	40
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Read Out	Single
Termination	Solder

Part	Gender	Read Out	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Features	Material - Insulation	Number of Positions	Card Thickness [Max]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Pitch [x]	Pitch [x]	Number of Positions/Bay/Row [custom]	Color	Termination	Number of Rows	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Mounting Type
Samtec Inc. SAL1-140-01-S-S-A-K-TR	Female	Single	Gold	-55 °C	125 °C	Board Guide Pick and Place Solder Retention	Liquid Crystal Polymer (LCP)	40	2.36 mm	1.6 mm	0.063 in	0.093 in	0.039 in	1 mm	40	Black	Solder	1	Beryllium Copper	0.76 Ám	30 Áin	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

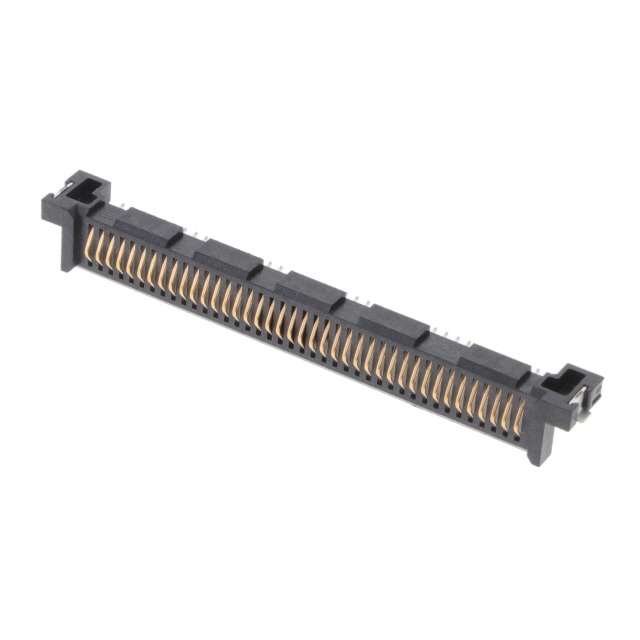

40 Position Female Connector Gold 0.039" (1.00mm) Black
