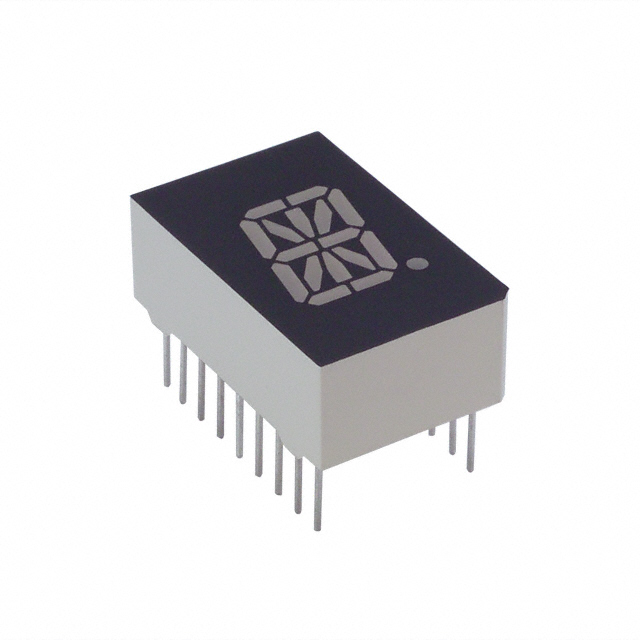

LTP-587Y

Active

Diodes Inc

DISPLAY 16SEG 0.5" SGL YLW 18DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LTP-587Y

Active

Diodes Inc

DISPLAY 16SEG 0.5" SGL YLW 18DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LTP-587Y

Color	Yellow
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	12.7 mm
Digit/Alpha Size	0.5 in
Display Type	16-Segment, Alphanumeric
Millicandela Rating	2.2 mcd
Number of Characters [custom]	1
Package / Case	18-DIP
Package / Case [custom]	12.7 mm
Size / Dimension [x]	0.63 "
Size / Dimension [x]	16 mm
Size / Dimension [y]	9.5 mm
Size / Dimension [y]	0.374 in
Size / Dimension [z]	0.984 in
Size / Dimension [z]	25 mm
Voltage - Forward (Vf) (Typ)	2.1 V
Wavelength - Peak	585 nm

LTP-587 Series

Part	Common Pin	Display Type	Voltage - Forward (Vf) (Typ)	Current - Test	Number of Characters [custom]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Digit/Alpha Size	Digit/Alpha Size	Millicandela Rating	Package / Case	Package / Case [custom]	Color	Wavelength - Peak
Diodes Inc LTP-587Y	Common Anode	16-Segment Alphanumeric	2.1 V	20 mA	1	9.5 mm	0.63 "	0.984 in	25 mm	16 mm	0.374 in	12.7 mm	0.5 in	2.2 mcd	18-DIP	12.7 mm	Yellow	585 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1000	$ 1.18

Description

General part information

LTP-587 Series

Display Modules - LED Character and Numeric Yellow 16-Segment, Alphanumeric 1 Character Common Anode 2.1V 20mA 0.984" H x 0.630" W x 0.374" D (25.00mm x 16.00mm x 9.50mm) 18-DIP (0.500", 12.70mm)
