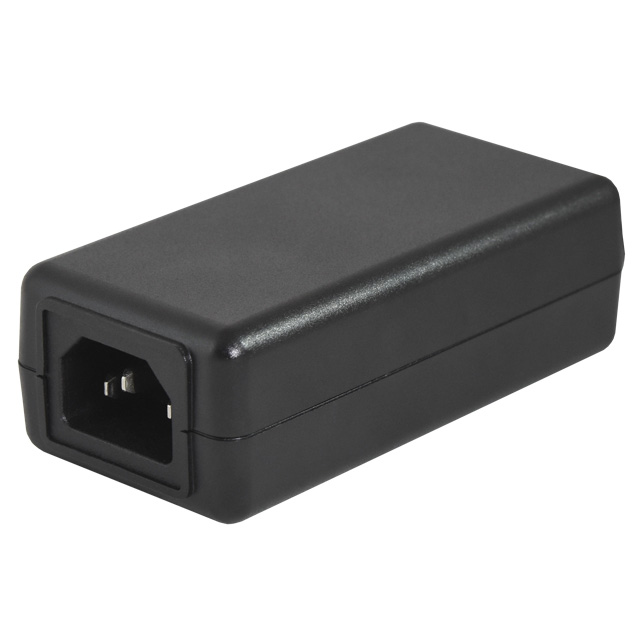

SDI24-48-U2-P5

Active

CUI Inc.

AC/DC DESKTOP ADAPTER 48V 24W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPower Supply Safety Standards, Agencies, and Marks Datasheet

SDI24-48-U2-P5

Active

CUI Inc.

AC/DC DESKTOP ADAPTER 48V 24W

Deep-Dive with AI

DocumentsPower Supply Safety Standards, Agencies, and Marks Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDI24-48-U2-P5

Applications	ITE (Commercial)
Approval Agency	CB Scheme, UL, PSE, EN, CCC, FCC, IEC, CSA
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	500 mA
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	24 W
Region Utilized	Europe
Size / Dimension [x]	100 mm
Size / Dimension [x]	3.94 in
Size / Dimension [y]	1.97 "
Size / Dimension [y]	50 mm
Size / Dimension [z]	33 mm
Size / Dimension [z]	1.3 "
Standard Number	C22.2 No. 60950-1, 55024, 62368-1, 60950-1, 61000-3-3, 55032 Class B, 61000-3-2
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	48 V

SDI24-UD Series

Desktop AC Adapters 22.5W 9V 2.5A C14 no cable 2.1x5.5 RA

...

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Input Connector	Current - Output (Max) [Max]	Output Connector [z]	Output Connector [y]	Output Connector	Output Connector [x]	Cord Length	Cord Length	Approval Agency	Operating Temperature [Max]	Applications	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Form	Standard Number	Region Utilized	Polarization	Voltage - Output	Input Type	No Load Power Consumption [Max]	Power (Watts)	Output Connector [diameter]
CUI Inc. SDI24-48-UD-P5R	1.97 "	50 mm	1.34 in	88.5 mm	3.48 in	34 mm	IEC 320-C8	500 mA	9.5 mm	5.5 mm	Barrel Plug R/A	2.1 mm	1.5 m	59 in	CB Scheme CCC CSA EN FCC IEC PSE RCM UL	40 °C	ITE (Commercial)	CoC Tier 2 Level VI	90 VAC	264 VAC	Desktop (Class II)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	International	Positive Center	48 V	Cord	75 mW	24 W
CUI Inc. SDI24-9-UC-P5R	1.97 "	50 mm	1.3 "	100 mm	3.94 in	33 mm	IEC 320-C14	2.5 A	9.5 mm	5.5 mm	Barrel Plug R/A	2.1 mm	1.5 m	59 in	CB Scheme CCC CSA EN FCC IEC PSE UL	40 °C	ITE (Commercial)	CoC Tier 2 Level VI	90 VAC	264 VAC	Desktop (Class I)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	North America	Positive Center	9 V	Cord	75 mW	23 W
CUI Inc. SDI24-48-U2-P5	1.97 "	50 mm	1.3 "	100 mm	3.94 in	33 mm	IEC 320-C14	500 mA			Barrel Plug	9.5 mm	1.5 m	59 in	CB Scheme CCC CSA EN FCC IEC PSE UL	40 °C	ITE (Commercial)	CoC Tier 2 Level VI	90 VAC	264 VAC	Desktop (Class I)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Europe	Positive Center	48 V	Cord	75 mW	24 W	2.1 mm 5.5 mm
CUI Inc. SDI24-12-U2-P6R	1.97 "	50 mm	1.3 "	100 mm	3.94 in	33 mm	IEC 320-C14	2 A			Barrel Plug R/A	9.5 mm	1.5 m	59 in	CB Scheme CCC CSA EN FCC IEC PSE UL	40 °C	ITE (Commercial)	CoC Tier 2 Level VI	90 VAC	264 VAC	Desktop (Class I)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Europe	Positive Center	12 V	Cord	75 mW	24 W	2.5 mm 5.5 mm
CUI Inc. SDI24-24-UC-P6	1.97 "	50 mm	1.3 "	100 mm	3.94 in	33 mm	IEC 320-C14	1 A			Barrel Plug	9.5 mm	1.5 m	59 in	CB Scheme CCC CSA EN FCC IEC PSE UL	40 °C	ITE (Commercial)	CoC Tier 2 Level VI	90 VAC	264 VAC	Desktop (Class I)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	North America	Positive Center	24 V	Cord	75 mW	24 W	2.5 mm 5.5 mm
CUI Inc. SDI24-12-UC-P6	1.97 "	50 mm	1.3 "	100 mm	3.94 in	33 mm	IEC 320-C14	2 A			Barrel Plug	9.5 mm	1.5 m	59 in	CB Scheme CCC CSA EN FCC IEC PSE UL	40 °C	ITE (Commercial)	CoC Tier 2 Level VI	90 VAC	264 VAC	Desktop (Class I)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	North America	Positive Center	12 V	Cord	75 mW	24 W	2.5 mm 5.5 mm
CUI Inc. SDI24-24-UDC-P6R	1.97 "	50 mm	1.34 in	88.5 mm	3.48 in	34 mm	IEC 320-C8	1 A			Barrel Plug R/A	9.5 mm	1.5 m	59 in	CB Scheme CCC CSA EN FCC IEC PSE RCM UL	40 °C	ITE (Commercial)	CoC Tier 2 Level VI	90 VAC	264 VAC	Desktop (Class II)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	North America	Positive Center	24 V	Cord	75 mW	24 W	2.5 mm 5.5 mm
CUI Inc. SDI24-24-UD2-P6R	1.97 "	50 mm	1.34 in	88.5 mm	3.48 in	34 mm	IEC 320-C8	1 A			Barrel Plug R/A	9.5 mm	1.5 m	59 in	CB Scheme CCC CSA EN FCC IEC PSE RCM UL	40 °C	ITE (Commercial)	CoC Tier 2 Level VI	90 VAC	264 VAC	Desktop (Class II)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Europe	Positive Center	24 V	Cord	75 mW	24 W	2.5 mm 5.5 mm
CUI Inc. SDI24-12-UD2-P6	1.97 "	50 mm	1.34 in	88.5 mm	3.48 in	34 mm	IEC 320-C8	2 A			Barrel Plug	9.5 mm	1.5 m	59 in	CB Scheme CCC CSA EN FCC IEC PSE RCM UL	40 °C	ITE (Commercial)	CoC Tier 2 Level VI	90 VAC	264 VAC	Desktop (Class II)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Europe	Positive Center	12 V	Cord	75 mW	24 W	2.5 mm 5.5 mm
CUI Inc. SDI24-9-UD2-P5R	1.97 "	50 mm	1.34 in	88.5 mm	3.48 in	34 mm	IEC 320-C8	2.5 A	9.5 mm	5.5 mm	Barrel Plug R/A	2.1 mm	1.5 m	59 in	CB Scheme CCC CSA EN FCC IEC PSE RCM UL	40 °C	ITE (Commercial)	CoC Tier 2 Level VI	90 VAC	264 VAC	Desktop (Class II)	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Europe	Positive Center	9 V	Cord	75 mW	23 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	480	$ 20.52
