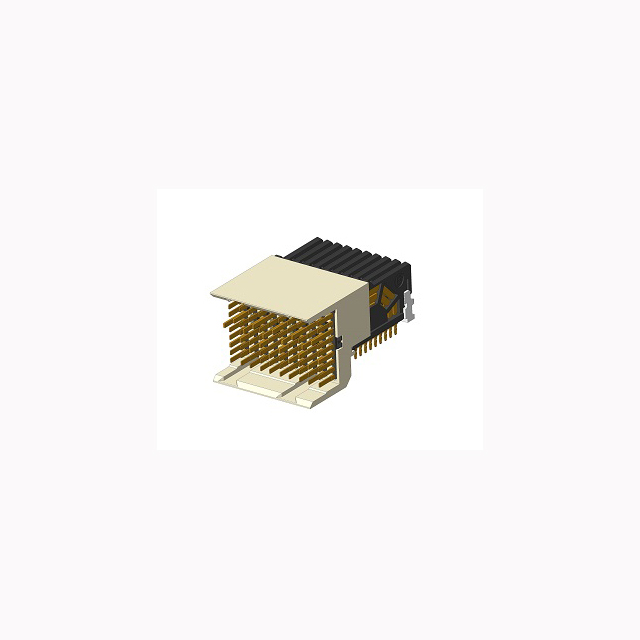

10034264-101LF

Active

Amphenol ICC (FCI)

CONN HDR HI SPEED 90POS EDGE MT

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN HDR HI SPEED 90POS EDGE MT

Technical Specifications

Parameters and characteristics for this part

Specification	10034264-101LF

Color	Natural
Connector Style	High Speed
Connector Type	Header, Male Pins
Connector Usage	Daughtercard
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Columns	10
Number of Positions	90
Number of Positions Loaded	All
Number of Rows	9
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Press-Fit

Part	Number of Positions Loaded	Mounting Type	Number of Columns	Color	Number of Positions	Pitch [x]	Pitch [x]	Connector Style	Material Flammability Rating	Connector Type	Termination	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Connector Usage
Amphenol ICC (FCI) 10034264-101LF	All	Board Edge Right Angle Through Hole	10	Natural	90	0.079 in	2 mm	High Speed	UL94 V-0	Header Male Pins	Press-Fit	9	85 °C	-55 °C	Daughtercard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1125	$ 14.40

General part information

90 Connector Header, Male Pins Board Edge, Through Hole, Right Angle Natural High Speed
