EDAC Inc.

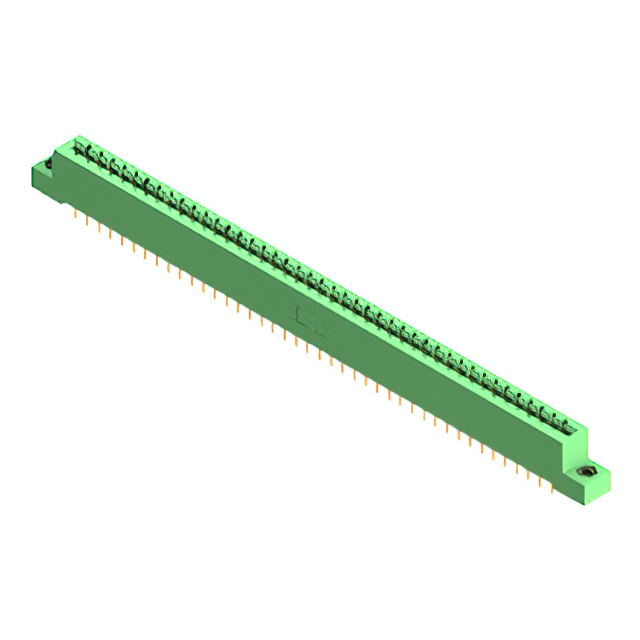

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 84 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Enhanced Product Overview EN +1

337-084-524-208

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 84 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Enhanced Product Overview EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	337-084-524-208

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	84
Number of Positions/Bay/Row [custom]	42
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

337-084 Series

...

Part	Gender	Termination	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Card Type	Contact Finish Thickness	Contact Finish Thickness	Read Out	Termination Rows	Number of Positions/Bay/Row [custom]	Color	Number of Rows	Contact Finish	Number of Positions	Mounting Type	Pitch [x]	Pitch [x]	Contact Type	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Features
EDAC Inc. 337-084-541-803	Female	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	10 Áin	0.25 Ám	Dual	2	42	Green	2	Gold	84	Through Hole	0.156 in	3.96 mm	Cantilever	Polyester Thermoplastic	-40 °C	105 ░C	Copper Alloy	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in
EDAC Inc. 337-084-540-203	Female	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	10 Áin	0.25 Ám	Dual	2	42	Green	2	Gold	84	Through Hole	0.156 in	3.96 mm	Cantilever	Polyester Thermoplastic	-40 °C	105 ░C	Copper Alloy	2.95 mm	Floating Bobbin Flush Mount	0.116 in
EDAC Inc. 337-084-555-807	Female	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	10 Áin	0.25 Ám	Dual	2	42	Green	2	Gold	84	Board Edge Straddle Mount	0.156 in	3.96 mm	Cantilever	Polyester Thermoplastic	-40 °C	105 ░C	Copper Alloy		M3 Threaded Insert Top Mount Opening		Card Extender
EDAC Inc. 337-084-523-201	Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	10 Áin	0.25 Ám	Dual	2	42	Green	2	Gold	84	Through Hole	0.156 in	3.96 mm	Cantilever	Polyester Thermoplastic	-40 °C	105 ░C	Copper Alloy
EDAC Inc. 337-084-524-208	Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	10 Áin	0.25 Ám	Dual	2	42	Green	2	Gold	84	Through Hole	0.156 in	3.96 mm	Cantilever	Polyester Thermoplastic	-40 °C	105 ░C	Copper Alloy		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 337-084-500-204	Female	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	10 Áin	0.25 Ám	Dual	2	42	Green	2	Gold	84	Through Hole	0.156 in	3.96 mm	Cantilever	Polyester Thermoplastic	-40 °C	105 ░C	Copper Alloy	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in
EDAC Inc. 337-084-558-803	Female	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	10 Áin	0.25 Ám	Dual	2	42	Green	2	Gold	84	Through Hole Right Angle	0.156 in	3.96 mm	Cantilever	Polyester Thermoplastic	-40 °C	105 ░C	Copper Alloy	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in
EDAC Inc. 337-084-558-258	Female	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	10 Áin	0.25 Ám	Dual	2	42	Green	2	Gold	84	Through Hole Right Angle	0.156 in	3.96 mm	Cantilever	Polyester Thermoplastic	-40 °C	105 ░C	Copper Alloy		4-40 Flush Mount Threaded Insert Top Opening		Card Guides
EDAC Inc. 337-084-541-807	Female	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	10 Áin	0.25 Ám	Dual	2	42	Green	2	Gold	84	Through Hole	0.156 in	3.96 mm	Cantilever	Polyester Thermoplastic	-40 °C	105 ░C	Copper Alloy		M3 Threaded Insert Top Mount Opening
EDAC Inc. 337-084-556-201	Female	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	10 Áin	0.25 Ám	Dual	2	42	Green	2	Gold	84	Board Edge Straddle Mount	0.156 in	3.96 mm	Cantilever	Polyester Thermoplastic	-40 °C	105 ░C	Copper Alloy				Card Extender

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 17.77
Newark	Each	1	$ 17.83
		100	$ 12.37
		250	$ 8.85
		500	$ 7.54
		1000	$ 6.23

Description

General part information

337-084 Series

84 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
