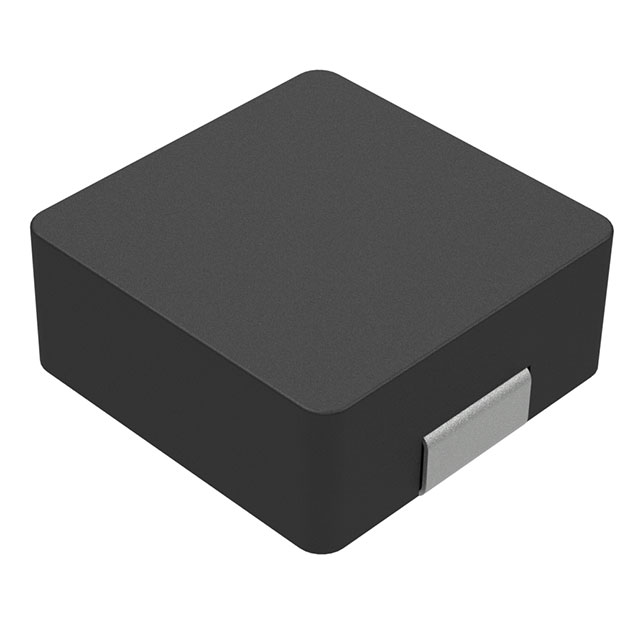

MWLA1707S-680MT

Active

Shenzhen Sunlord Electronics Co., Ltd.

FIXED IND 68UH 80MOHM 8000MA

Search across all available documentation for this part.

Active

Shenzhen Sunlord Electronics Co., Ltd.

FIXED IND 68UH 80MOHM 8000MA

Technical Specifications

Parameters and characteristics commom to parts in this series

FIXED IND 4.7UH 5.5MOHM 41000MA

Part	Type	Mounting Type	Current Rating (Amps)	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Shielding	Current - Saturation (Isat)	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR) [Max]	Inductance	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Tolerance	Material - Core	Inductance Frequency - Test
Shenzhen Sunlord Electronics Co., Ltd. MWLA1707S-4R7MT	Drum Core, Wirewound	Surface Mount	25 A	Nonstandard	7 mm	0.276 "	Shielded	41 A	-55 °C	125 °C	5.5 mOhm	4.7 ÁH	0.689 in	17.5 mm	0.669 in	17 mm	20 %	Carbonyl Powder	100 kHz
Shenzhen Sunlord Electronics Co., Ltd. MWLA1707S-680MT	Drum Core, Wirewound	Surface Mount	7 A	Nonstandard	7 mm	0.276 "	Shielded	8 A	-55 °C	125 °C	80 mOhm	68 µH	0.689 in	17.5 mm	0.669 in	17 mm	20 %	Carbonyl Powder	100 kHz
Shenzhen Sunlord Electronics Co., Ltd. MWLA1707S-3R3MT	Drum Core, Wirewound	Surface Mount	28 A	Nonstandard	7 mm	0.276 "	Shielded	45 A	-55 °C	125 °C	3.9 mOhm	3.3 µH	0.689 in	17.5 mm	0.669 in	17 mm	20 %	Carbonyl Powder	100 kHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

68 µH Shielded Drum Core, Wirewound Inductor 7 A 80mOhm Max Nonstandard
