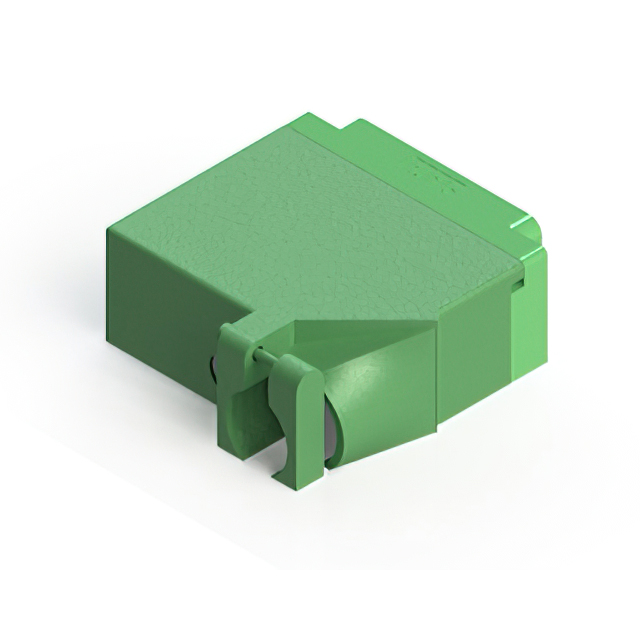

516-120-000-116

Active

EDAC Inc.

516 SERIES RACK & PANEL CONNECTO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

516-120-000-116

Active

EDAC Inc.

516 SERIES RACK & PANEL CONNECTO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	516-120-000-116

Color	Green
Connector Style	Rack and Panel
Connector Type	Housing for Non-Gendered Contacts
Connector Usage	Plug
Features	Backshell, Jackscrew Socket
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	120
Number of Rows	17
Pitch [x]	0.15 in
Pitch [x]	3.81 mm

516-120 Series

...

Part	Mounting Type	Number of Positions	Number of Rows	Pitch [x]	Pitch [x]	Connector Usage	Features	Connector Style	Color	Connector Type	Note
EDAC Inc. 516-120-500-461	Free Hanging (In-Line)	120	17	0.15 in	3.81 mm	Receptacle	Backshell Jackscrew Mating Guide	Rack and Panel	Gray	Housing for Non-Gendered Contacts	Contacts Not Included
EDAC Inc. 516-120-541-402		120	17	0.15 in	3.81 mm	Receptacle	Jackscrew Socket Mating Guide	Rack and Panel	Gray	Housing for Non-Gendered Contacts	Contacts Not Included
EDAC Inc. 516-120-520-455	Free Hanging (In-Line)	120	17	0.15 in	3.81 mm	Receptacle	Backshell Jackscrew	Rack and Panel	Gray	Housing for Non-Gendered Contacts	Contacts Not Included
EDAC Inc. 516-120-542-265	Free Hanging (In-Line)	120	17	0.15 in	3.81 mm	Receptacle	Backshell Jackscrew	Rack and Panel	Green	Housing for Non-Gendered Contacts	Contacts Not Included
EDAC Inc. 516-120-000-116	Free Hanging (In-Line)	120	17	0.15 in	3.81 mm	Plug	Backshell Jackscrew Socket	Rack and Panel	Green	Housing for Non-Gendered Contacts	Contacts Not Included
EDAC Inc. 516-120-500-361	Free Hanging (In-Line)	120	17	0.15 in	3.81 mm	Plug	Backshell Guide Pin Jackscrew	Rack and Panel	Gray	Housing for Non-Gendered Contacts	Contacts Not Included
EDAC Inc. 516-120-520-311	Free Hanging (In-Line)	120	17	0.15 in	3.81 mm	Plug	Backshell Guide Pin Jackscrew	Rack and Panel	Gray	Housing for Non-Gendered Contacts	Contacts Not Included
EDAC Inc. 516-120-541-411	Free Hanging (In-Line)	120	17	0.15 in	3.81 mm	Receptacle	Backshell Jackscrew Mating Guide	Rack and Panel	Gray	Housing for Non-Gendered Contacts	Contacts Not Included
EDAC Inc. 516-120-540-216	Free Hanging (In-Line)	120	17	0.15 in	3.81 mm	Receptacle	Backshell Jackscrew Socket	Rack and Panel	Green	Housing for Non-Gendered Contacts	Contacts Not Included
EDAC Inc. 516-120-542-110	Free Hanging (In-Line)	120	17	0.15 in	3.81 mm	Plug	Backshell	Rack and Panel	Green	Housing for Non-Gendered Contacts	Contacts Not Included

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 28.26

Description

General part information

516-120 Series

120 Position Housing for Non-Gendered Contacts Connector Green Free Hanging (In-Line) Rack and Panel
