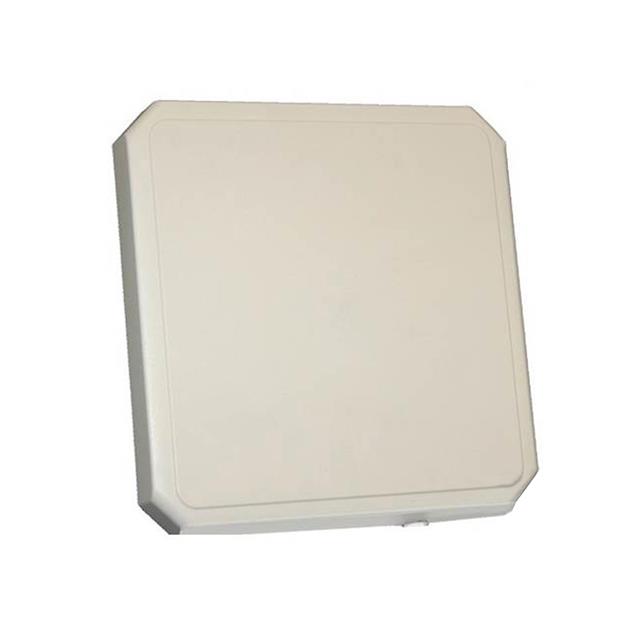

PAL902010-FNF
ActiveTE Connectivity Raychem Cable Protection
RF ANT 915MHZ FLAT PNL N FEM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PAL902010-FNF
ActiveTE Connectivity Raychem Cable Protection
RF ANT 915MHZ FLAT PNL N FEM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PAL902010-FNF |
|---|---|
| Antenna Type | Flat Panel |
| Frequency (Center/Band) | 915 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 928 MHz |
| Frequency Range [Min] | 902 MHz |
| Gain | 9.6 dB |
| Height (Max) [Max] | 33.5 mm |
| Height (Max) [Max] | 1.319 in |
| Ingress Protection | IP67 |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 50 W |
| Termination | N Type Female |
| VSWR | 1.3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 169.54 | |
| 10 | $ 162.38 | |||
| 25 | $ 158.80 | |||
Description
General part information
PAL902010 Series
RF ANTENNA Flat Panel N Type Female Bracket Mount
