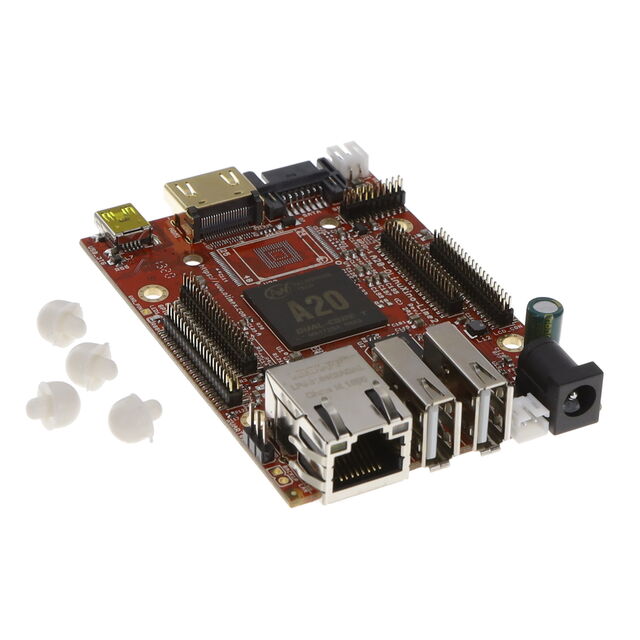

A20-OLINUXINO-LIME2-S16M

Active

Olimex LTD

SBC 1.0GHZ 2 CORE 1GB/0GB RAM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A20-OLINUXINO-LIME2-S16M

Active

Olimex LTD

SBC 1.0GHZ 2 CORE 1GB/0GB RAM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 48.33

Description

General part information

A20-OLINUXINO Series

Single Board Computer 1GHz 2 Core 1GB/0GB RAM ARM Cortex-A7

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A20-OLINUXINO-LIME2-S16M	A20-OLINUXINO Series

Contents	-	HDMI Cable
Core Processor	ARM Cortex-A7	ARM Cortex-A7, ARM Cortex-A53
Ethernet	GbE (1)	1, 100 Mbps, GbE, 10 Mbps, 1000 Mbps, GbE (1)
Ethernet	-	100 Mbps
Ethernet	-	1000 Mbps
Expansion Site/Bus	SATA, UART, SPI, GPIO, microSD	SATA, UART, SPI, GPIO, microSD, MIPI CSI, MIPI DSI, Audio
Number of Cores	2	2 - 4
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
RAM Capacity/Installed	0 GB, 1 GB	0 - 512 MB
Size / Dimension [x]	84 mm	84 - 142.24 mm
Size / Dimension [x]	3.307 in	3.307 - 5.6 in
Size / Dimension [y]	2.362 in	2.362 - 3.25 in
Size / Dimension [y]	60 mm	60 - 82.55 mm
Speed	1 GHz	1 - 1.2 GHz
Storage Interface	SPI, SATA, NAND - Flash, microSD	SATA, eMMC, NAND - Flash, microSD, SPI, Flash, SATA HDD
USB	2 PHY, 1	1 - 2 PHY
USB	-	Micro USB (1), USB OTG (1), USB Type-A (1)
Video Outputs	HDMI	HDMI, MIPI-CSI, MIPI-DSI, VGA, LCD
Watchdog Timer	False	False

A20-OLINUXINO Series

SBC 1.0GHZ 2 CORE 512MB RAM

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	USB	Number of Cores	Storage Interface	Video Outputs	Speed	Contents	Ethernet [Min]	Ethernet	Ethernet [Max]	Expansion Site/Bus	Operating Temperature [Max]	Operating Temperature [Min]	Core Processor	RAM Capacity/Installed	USB
Olimex LTD A20-OLINUXINO-LIME-E4GS16M	2.362 in	84 mm	3.307 in	60 mm	1, 2 PHY	2	eMMC, microSD, NAND - Flash, SATA	HDMI	1 GHz	HDMI Cable	100 Mbps	1	1000 Mbps	GPIO, microSD, SATA, SPI, UART	85 °C	-40 °C	ARM Cortex-A7	0 GB, 512 MB
Olimex LTD A64-OLINUXINO-2GE16G-IND	2.5 in	88.9 mm	3.5 in	63.5 mm		4	eMMC, microSD, SPI	HDMI, MIPI-CSI, MIPI-DSI	1.2 GHz			10 Mbps, 100 Mbps, 1000 Mbps, GbE		GPIO, microSD, MIPI CSI, MIPI DSI, SPI, UART	85 °C	-40 °C	ARM Cortex-A53	0 GB, 2 GB	Micro USB (1), USB OTG (1), USB Type-A (1)
Olimex LTD A20-OLINUXINO-MICRO-E4GS16M	3.25 "	142.24 mm	5.6 "	82.55 mm	1, 2 PHY	2	eMMC, Flash, microSD, SATA HDD	HDMI, VGA	1 GHz	HDMI Cable	100 Mbps	1	1000 Mbps	Audio, GPIO, microSD, SATA, SPI, UART	85 °C	-40 °C	ARM Cortex-A7	0 GB, 1 GB
Olimex LTD A64-OLINUXINO-1GE16GW	2.461 in	90 mm	3.543 "	62.5 mm		4	eMMC, Flash, microSD	HDMI, LCD, MIPI-DSI	1.2 GHz			10 Mbps, 100 Mbps, 1000 Mbps, GbE		Audio, GPIO, microSD, SPI, UART	85 °C	-40 °C	ARM Cortex-A53	0 GB, 1 GB	Micro USB (1), USB OTG (1), USB Type-A (1)
Olimex LTD A64-OLINUXINO-1GE16GW-EA	2.461 in	90 mm	3.543 "	62.5 mm		4	eMMC, Flash, microSD	HDMI, LCD, MIPI-DSI	1.2 GHz			10 Mbps, 100 Mbps, 1000 Mbps, GbE		Audio, GPIO, microSD, SPI, UART	85 °C	-40 °C	ARM Cortex-A53	0 GB, 1 GB	Micro USB (1), USB OTG (1), USB Type-A (1)
Olimex LTD A20-OLINUXINO-MICRO-S16M	3.25 "	142.24 mm	5.6 "	82.55 mm	1, 2 PHY	2	microSD, SATA HDD	HDMI, VGA	1 GHz	HDMI Cable	100 Mbps	1	1000 Mbps	Audio, GPIO, microSD, SATA, SPI, UART	85 °C	-40 °C	ARM Cortex-A7	0 GB, 1 GB
Olimex LTD A64-OLINUXINO-1G	2.461 in	90 mm	3.543 "	62.5 mm		4	microSD	HDMI, LCD, MIPI-DSI	1.2 GHz			10 Mbps, 100 Mbps, 1000 Mbps, GbE		Audio, GPIO, microSD, SPI, UART	85 °C	-40 °C	ARM Cortex-A53	0 GB, 1 GB	Micro USB (1), USB OTG (1), USB Type-A (1)
Olimex LTD A20-OLINUXINO-LIME-E16GS16M	2.362 in	84 mm	3.307 in	60 mm	1, 2 PHY	2	eMMC, microSD, NAND - Flash, SATA	HDMI	1 GHz	HDMI Cable	100 Mbps	1	1000 Mbps	GPIO, microSD, SATA, SPI, UART	85 °C	-40 °C	ARM Cortex-A7	0 GB, 512 MB
Olimex LTD A20-OLINUXINO-MICRO-E16GS16M	3.25 "	142.24 mm	5.6 "	82.55 mm	1, 2 PHY	2	eMMC, Flash, microSD, SATA HDD	HDMI, VGA	1 GHz	HDMI Cable	100 Mbps	1	1000 Mbps	Audio, GPIO, microSD, SATA, SPI, UART	85 °C	-40 °C	ARM Cortex-A7	0 GB, 1 GB
Olimex LTD A20-OLINUXINO-LIME2-S16M	2.362 in	84 mm	3.307 in	60 mm	1, 2 PHY	2	microSD, NAND - Flash, SATA, SPI	HDMI	1 GHz			GbE (1)		GPIO, microSD, SATA, SPI, UART	85 °C	-40 °C	ARM Cortex-A7	0 GB, 1 GB
