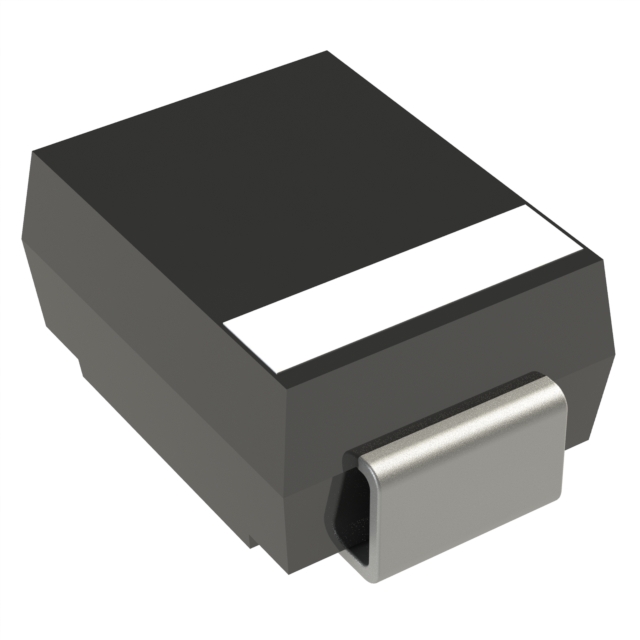

SMLJ33A-Q

Active

Bourns Inc.

TVS DIODE, AEC-Q101, 3KW, 33V, DO-214AB

Search across all available documentation for this part.

Active

Bourns Inc.

TVS DIODE, AEC-Q101, 3KW, 33V, DO-214AB

Technical Specifications

Parameters and characteristics for this part

Specification	SMLJ33A-Q

Current - Peak Pulse (10/1000µs)	56.2 A
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	SMC, DO-214AB
Power - Peak Pulse	3000 W
Power - Peak Pulse	3 kW
Power Line Protection	False
Qualification	AEC-Q101
Supplier Device Package	DO-214AB (SMC)
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	36.7 V
Voltage - Clamping (Max) @ Ipp	53.3 V
Voltage - Reverse Standoff (Typ)	33 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Breakdown (Min) [Min]	Supplier Device Package	Grade	Power Line Protection	Package / Case	Voltage - Clamping (Max) @ Ipp	Power - Peak Pulse	Power - Peak Pulse	Current - Peak Pulse (10/1000µs)	Mounting Type	Voltage - Reverse Standoff (Typ)	Type	Unidirectional Channels [custom]	Qualification
Bourns Inc. SMLJ33A-Q	-55 °C	150 °C	36.7 V	DO-214AB (SMC)	Automotive		DO-214AB SMC	53.3 V	3000 W	3 kW	56.2 A	Surface Mount	33 V	Zener	1	AEC-Q101

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

53.3V Clamp 56.2A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
