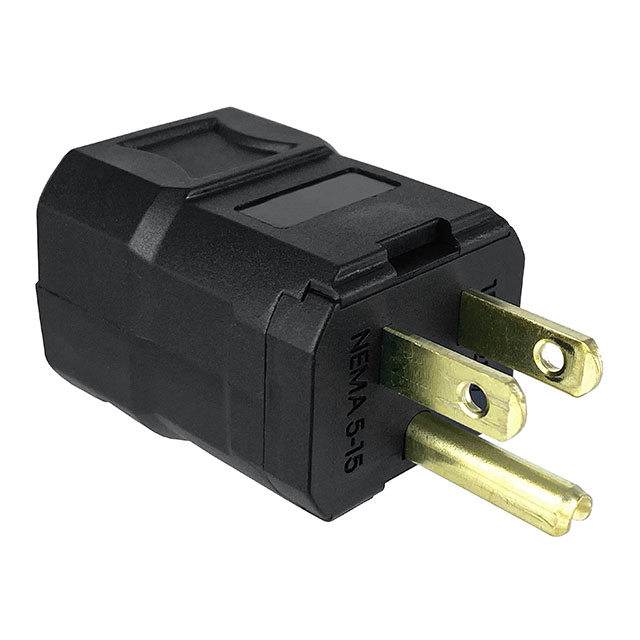

Q-910
ActiveQualtek
NEMA 5-15P PLUG REWIREABLE STRAI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Q-910
ActiveQualtek
NEMA 5-15P PLUG REWIREABLE STRAI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | Q-910 | - Series |
|---|---|---|
| - | - | |
| Approval Agency | UL, cUL | UL, cUL |
| Connector Style | NEMA 5-15P | NEMA 6-20R, NEMA 6-20P, NEMA 5-15P, NEMA 5-15R, NEMA L5-15R, NEMA L5-15P |
| Connector Type | Plug, Male Blades | Female Sockets, Plug, Plug, Male Blades, Receptacle, Female Sockets |
| Current Rating (Amps) | 15 A | 15 - 20 A |
| Fan Accessory Type | - | Replacement Filter Element |
| Features | Cable Clamp | Cable Clamp |
| Fits Fan Size | - | 40 - 119 mm |
| For Use With/Related Products | - | QLM Sleeves |
| Material | - | Foam |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Outlet Box |
| Termination | Screw | Screw |
| Voltage Rating | 125 VAC | 125 - 250 VAC |
- Series
FILTER MEDIA 60MM WHITE
| Part | For Use With/Related Products | Material | Fits Fan Size | Fan Accessory Type | Termination | Voltage Rating | Mounting Type | Current Rating (Amps) | Connector Style | Approval Agency | Features | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Qualtek QF-60-01 | QLM Sleeves | Foam | 60 mm | Replacement Filter Element | ||||||||
Qualtek Q-728 | Screw | 250 VAC | Free Hanging (In-Line) | 20 A | NEMA 6-20R | cUL, UL | Cable Clamp | Female Sockets, Plug | ||||
Qualtek Q-726 | Screw | 250 VAC | Free Hanging (In-Line) | 20 A | NEMA 6-20P | cUL, UL | Cable Clamp | Plug, Male Blades | ||||
Qualtek Q-910 | Screw | 125 VAC | Free Hanging (In-Line) | 15 A | NEMA 5-15P | cUL, UL | Cable Clamp | Plug, Male Blades | ||||
Qualtek Q-712 | Screw | 125 VAC | Free Hanging (In-Line) | 15 A | NEMA 5-15R | cUL, UL | Cable Clamp | Female Sockets, Plug | ||||
Qualtek QF-92-01 | QLM Sleeves | Foam | 92 mm | Replacement Filter Element | ||||||||
Qualtek QF-119-01 | QLM Sleeves | Foam | 119 mm | Replacement Filter Element | ||||||||
Qualtek Q-722 | Screw | 250 VAC | Free Hanging (In-Line) | 15 A | cUL, UL | Cable Clamp | Female Sockets, Plug | |||||
Qualtek QF-40-01 | QLM Sleeves | Foam | 40 mm | Replacement Filter Element | ||||||||
Qualtek Q-610 | Screw | 125 VAC | Outlet Box | 15 A | NEMA L5-15R | cUL, UL | Receptacle, Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.54 | |
| 10 | $ 6.82 | |||
| 25 | $ 6.44 | |||
| 50 | $ 6.28 | |||
| 100 | $ 5.97 | |||
| 250 | $ 5.34 | |||
| 500 | $ 5.03 | |||
| 1000 | $ 4.40 | |||
Description
General part information
- Series
Power Connector Plug, Male Blades NEMA 5-15P Free Hanging (In-Line)
Documents
Technical documentation and resources
