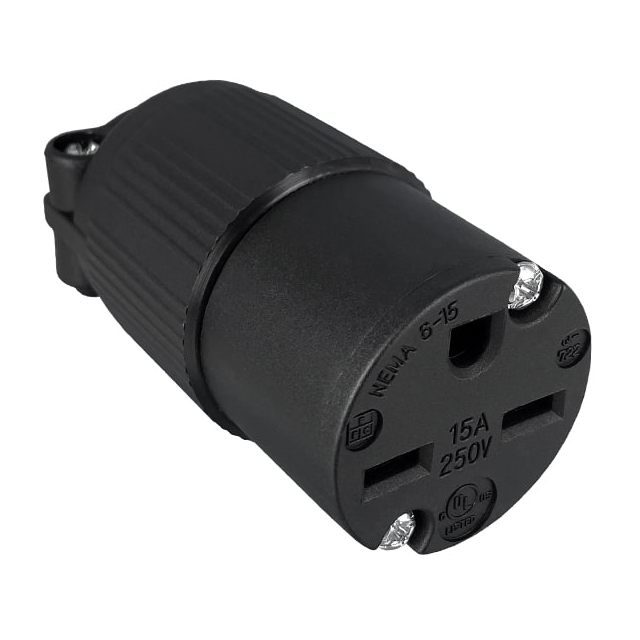

Q-722

Active

Qualtek

PWR ENT PLUG NEMA6-15 STR SCREW

Search across all available documentation for this part.

Active

Qualtek

PWR ENT PLUG NEMA6-15 STR SCREW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Connector Plug, Female Sockets NEMA 6-15R Free Hanging (In-Line)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	Q-722	- Series

	-	-
Approval Agency	UL, cUL	UL, cUL
Connector Style	-	NEMA 6-20R, NEMA 6-20P, NEMA 5-15P, NEMA 5-15R, NEMA L5-15R, NEMA L5-15P
Connector Type	Female Sockets, Plug	Female Sockets, Plug, Plug, Male Blades, Receptacle, Female Sockets
Current Rating (Amps)	15 A	15 - 20 A
Fan Accessory Type	-	Replacement Filter Element
Features	Cable Clamp	Cable Clamp
Fits Fan Size	-	40 - 119 mm
For Use With/Related Products	-	QLM Sleeves
Material	-	Foam
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Outlet Box
Termination	Screw	Screw
Voltage Rating	250 VAC	125 - 250 VAC

FILTER MEDIA 60MM WHITE

Part	For Use With/Related Products	Material	Fits Fan Size	Fan Accessory Type	Termination	Voltage Rating	Mounting Type	Current Rating (Amps)	Connector Style	Approval Agency	Features	Connector Type
Qualtek QF-60-01	QLM Sleeves	Foam	60 mm	Replacement Filter Element
Qualtek Q-728					Screw	250 VAC	Free Hanging (In-Line)	20 A	NEMA 6-20R	cUL, UL	Cable Clamp	Female Sockets, Plug
Qualtek Q-726					Screw	250 VAC	Free Hanging (In-Line)	20 A	NEMA 6-20P	cUL, UL	Cable Clamp	Plug, Male Blades
Qualtek Q-910					Screw	125 VAC	Free Hanging (In-Line)	15 A	NEMA 5-15P	cUL, UL	Cable Clamp	Plug, Male Blades
Qualtek Q-712					Screw	125 VAC	Free Hanging (In-Line)	15 A	NEMA 5-15R	cUL, UL	Cable Clamp	Female Sockets, Plug
Qualtek QF-92-01	QLM Sleeves	Foam	92 mm	Replacement Filter Element
Qualtek QF-119-01	QLM Sleeves	Foam	119 mm	Replacement Filter Element
Qualtek Q-722					Screw	250 VAC	Free Hanging (In-Line)	15 A		cUL, UL	Cable Clamp	Female Sockets, Plug
Qualtek QF-40-01	QLM Sleeves	Foam	40 mm	Replacement Filter Element
Qualtek Q-610					Screw	125 VAC	Outlet Box	15 A	NEMA L5-15R	cUL, UL		Receptacle, Female Sockets
