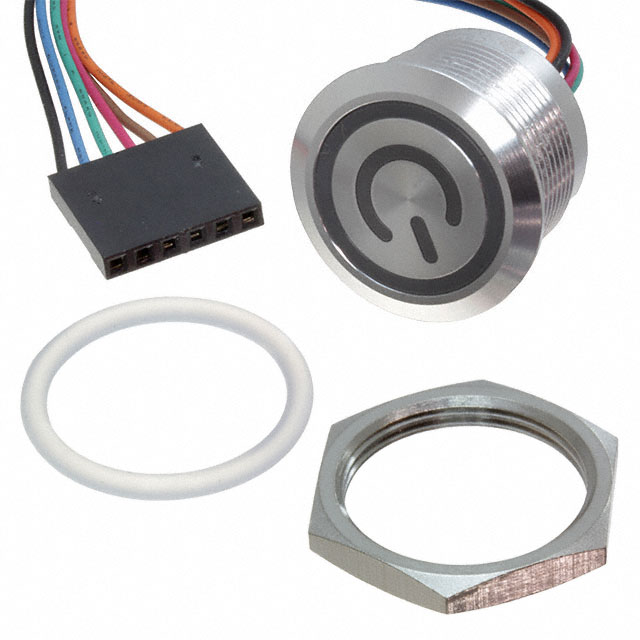

CS4L2FP

Active

E-Switch

SWITCH PB SPST 1A 24V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PB SPST 1A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	CS4L2FP

Actuator Marking	Power Symbol
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Current Rating (Amps)	1 A
Electrical Life	50000000 Cycles
Illumination Type, Color	Red, LED, Blue, Green
Mounting Type	Panel Mount, Front
Panel Cutout Dimensions [diameter]	19.2 mm
Switch Function	Off-On
Type	Illuminated, Anti-Vandal, Capacitive
Voltage Rating - DC	24 V

Part	Color - Actuator/Cap	Actuator Type	Mounting Type	Electrical Life	Illumination Type, Color	Actuator Marking	Current Rating (Amps)	Voltage Rating - DC	Switch Function	Type	Circuit	Panel Cutout Dimensions [diameter]
E-Switch CS4L2FP	Silver	Button Flush Round	Panel Mount Front	50000000 Cycles	Blue Green LED Red	Power Symbol	1 A	24 V	Off-On	Anti-Vandal Capacitive Illuminated	SPST-NO	19.2 mm
E-Switch CS4L2FR	Silver	Button Flush Round	Panel Mount Front	50000000 Cycles	Blue Green LED Red	No Marking	1 A	24 V	Off-On	Anti-Vandal Capacitive Illuminated	SPST-NO	19.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Capacitive, Anti-Vandal, Illuminated Panel Mount, Front
