77-1K-3173-02400

Active

Parker Chomerics

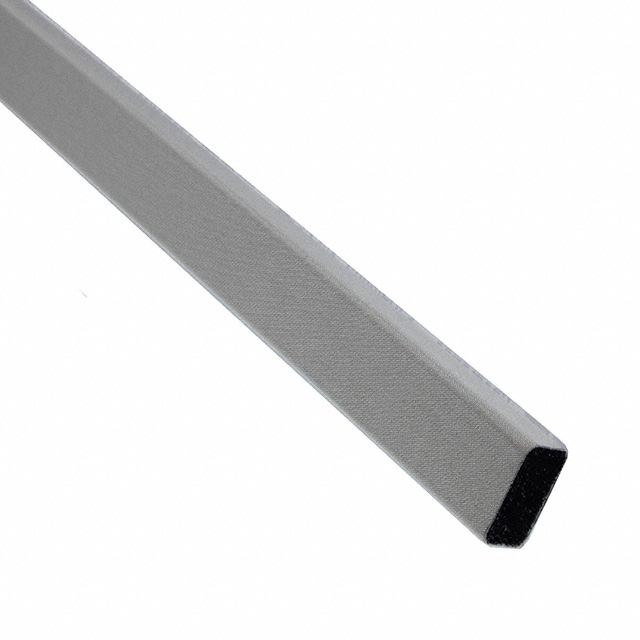

RFI FOF GASKET NI/CU ADH

Search across all available documentation for this part.

Active

Parker Chomerics

RFI FOF GASKET NI/CU ADH

Technical Specifications

Parameters and characteristics for this part

Specification	77-1K-3173-02400

Attachment Method	Adhesive
Height [z]	3.18 mm
Height [z]	0.125 "
Length [x]	24 in
Length [x]	609.6 mm
Material	Nickel-Copper Ripstop over Urathane Foam
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Shape	Rectangle
Shelf Life	24 Months
Shelf Life Start	Date of Shipment
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Type	Fabric Over Foam

Part	Shelf Life	Shelf Life Start	Width [x]	Width [x]	Material	Height [z]	Height [z]	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Length [x]	Length [x]	Shape	Type	Operating Temperature [Min]	Operating Temperature [Max]	Attachment Method
Parker Chomerics 77-1K-3648-02400	24 Months	Date of Shipment	0.15 in	3.81 mm	Nickel-Copper Ripstop over Urathane Foam	0.09 in	2.29 mm	70 °F	21 °C	24 in	609.6 mm	D-Shape	Fabric Over Foam	-40 °C	70 °C	Adhesive
Parker Chomerics 77-1K-3173-02400	24 Months	Date of Shipment			Nickel-Copper Ripstop over Urathane Foam	0.125 "	3.18 mm	70 °F	21 °C	24 in	609.6 mm	Rectangle	Fabric Over Foam	-40 °C	70 °C	Adhesive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
