SST139C-600E

Active

SMC Diode Solutions

TRIAC 600V 16A TO220C

Search across all available documentation for this part.

Active

SMC Diode Solutions

TRIAC 600V 16A TO220C

Technical Specifications

Parameters and characteristics for this part

Specification	SST139C-600E

Configuration	Single
Current - Gate Trigger (Igt) (Max) [Max]	25 mA
Current - Hold (Ih) (Max) [Max]	25 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	140 A
Current - On State (It (RMS)) (Max)	16 A
Mounting Type	Through Hole
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C

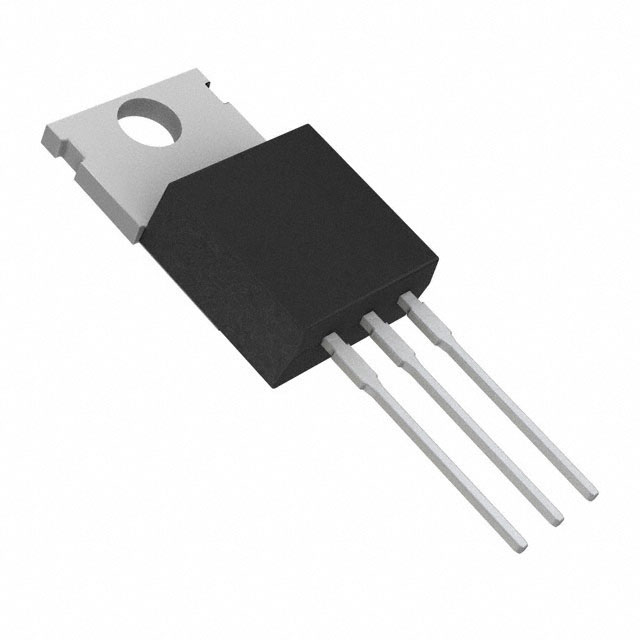

Package / Case	TO-220-3
Supplier Device Package	TO-220C
Triac Type	Standard
Voltage - Gate Trigger (Vgt) (Max) [Max]	1.3 V
Voltage - Off State	600 V

Part	Mounting Type	Voltage - Off State	Voltage - Gate Trigger (Vgt) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Triac Type	Current - Hold (Ih) (Max) [Max]	Package / Case	Current - On State (It (RMS)) (Max)	Current - Gate Trigger (Igt) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Supplier Device Package	Configuration
SMC Diode Solutions SST139C-600E	Through Hole	600 V	1.3 V	-40 °C	125 ¯C	Standard	25 mA	TO-220-3	16 A	25 mA	140 A	TO-220C	Single

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	5000	$ 0.39

General part information

TRIAC Standard 600 V 16 A Through Hole TO-220C
